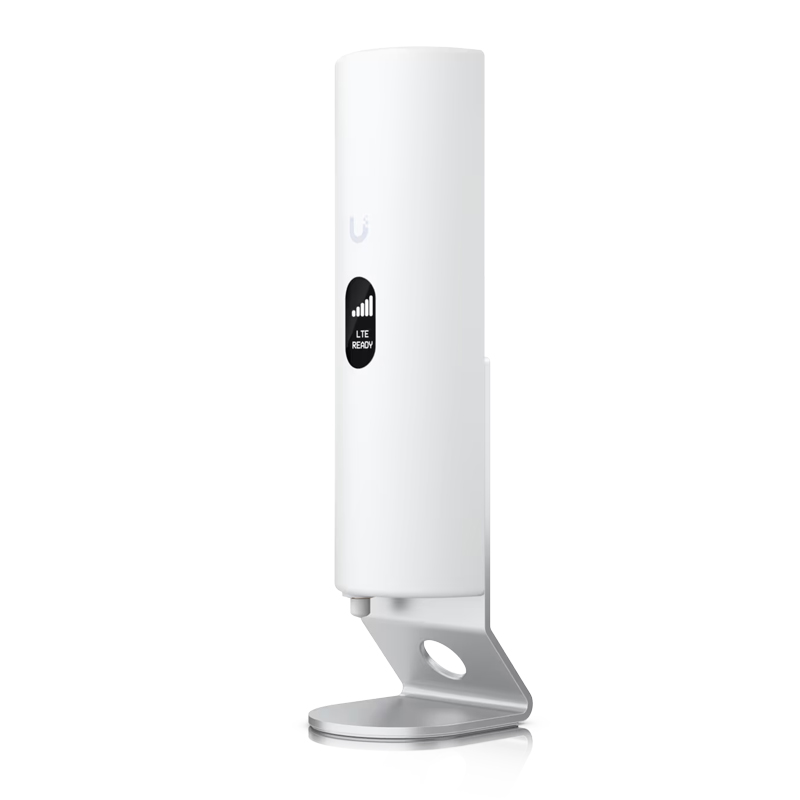

Ubiquiti UniFi LTE Backup Pro for UniFi Cloud Gateway or UniFi Gateway

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Description

Specifications

Resources

Package Contents

The Ubiquiti UniFi LTE Backup Pro provides seamless internet failover for UniFi gateways. Bring your own SIM for LTE data.

Note. PoE+ input required for PoE passthrough.

Features

Indoor model (UMR series recommended for Outdoor use)
Requires a UniFi Cloud Gateway or UniFi Gateway
Bring your own nano-SIM for LTE data
Flexible mounting
(1) GbE PoE port, PoE+ input required for PoE passthrough on secondary port
RP-SMA connector for optional external antenna
1.54" status display

Details
Manufacturer's Code	U-LTE-Backup-Pro-EU
Dimensions	66 x 202 x 32 mm
Weight	Without stand: 223 g, With stand: 336 g
Enclosure Material	Polycarbonate
Mount Material	Stand: aluminium, Wall mount: polycarbonate
Processor	74 Kc MIPS processor at 775 MHz
Memory	128 MB DDR2
Networking Interface	(2) GbE RJ45 ports, LTE Category 4 radio
PoE Interface	(1) PoE in (PoE output not used), (1) PoE passthrough output (Requires a PoE+ switch)
SIM	nano-SIM
LTE Bands	B1, B3, B7, B8, B20, B28
Power Supply	UniFi PoE switch or 48V, 0.5A PoE adapter
Supported Voltage Range	44—57V DC
Maximum Power Consumption	Excluding PoE passthrough output: 8.5W
Maximum PoE Passthrough Wattage Per Port	15.4W
MIMO	2 x 2 LTE Category 4
Maximum Throughput speeds	Download 150 Mbps / Upload 50 Mbps
Antenna	(2) Internal LTE antennas, (1) Female RP-SMA connector for an 6dBi external antenna (optional, max. 6dBi)
LCM Display	1.54" screen
Mounting	Wall mount or foot stand (Included)
Ambient Operating Temperature	-10 to 60° C
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
