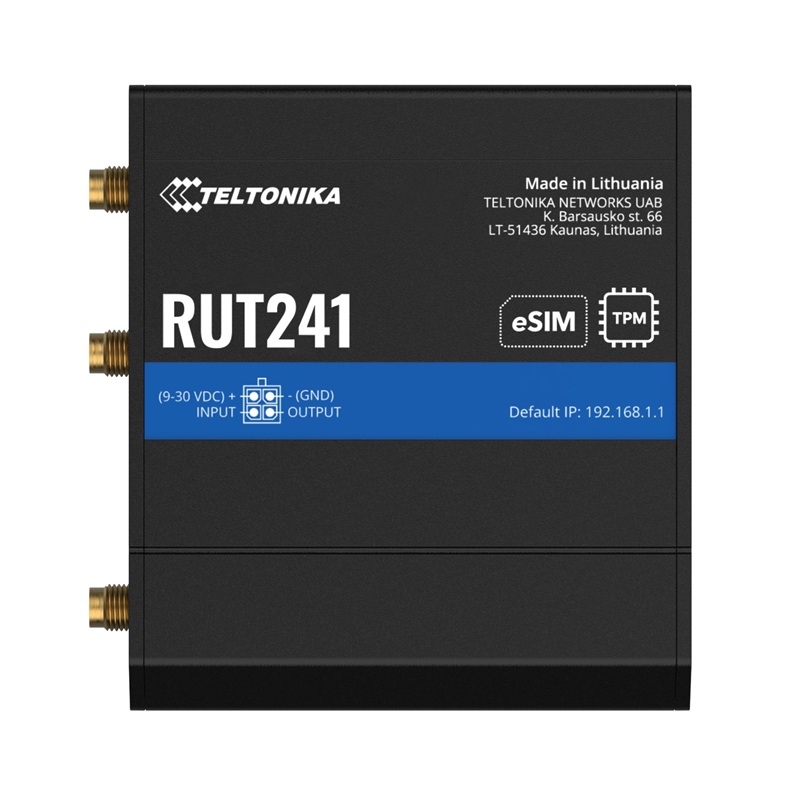

Teltonika RUT241eSIM Industrial 4G/LTE WiFi Cellular Router with Digital IO. The RUT241 eSIM™ is an industrial cellular router equipped with LTE Cat 4 and eSIM™ with SGP.22 pull-based consumer architecture. This compact eSIM™ router supports a physical SIM card, up to seven eSIM™ profiles, controlled via WebUI and RMS, and Trusted Platform Module (TPM) for enhanced security. The RUT241 eSIM™ router provides undisrupted connectivity with automatic WAN failover and two Ethernet ports, making it perfect for your M2M and IoT solutions.
Features
- 4G LTE (Cat 4), 3G, 2G
- eSIM™ Seamless connectivity with eSIM™ SGP.22
- TPM Next-gen router security with Trusted Platform Module
- RMS For easy & convenient eSIM™ profile management
| Details | |
|---|---|
| Product code | RUT241eSIM (RUT241235000) |
| Mobile module | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
| Supported Bands | 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28; 4G (LTE-TDD): B38, B39, B40, B41 |
| 3GPP Release | Release 10/11 depending on the hardware version |
| eSIM | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list (by country or separate operators) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band management | Band lock, Used band status display |
| SIM PIN code management | SIM PIN code management enables setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Wireless mode | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Ethernet WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
| Ethernet LAN | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB, SPI Flash |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder |
| Power | 1 x 4-pin power connector |
| Antennas | 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors |
| Reset | Reboot/User default reset/Factory reset button |
| Casing material | Aluminium housing, plastic panels |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Weight | 125 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Details | |
|---|---|
| Includes | 9 W PSU, 2 x LTE antennas (swivel, SMA male), 1 x WiFi antenna (swivel, RP-SMA male) Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide) |
600-999MHz , 1700-2100MHz , 2.4GHz
4G , Wi-Fi 4 , GPS/GNSS
100Mbps
RJ45 , RP-SMA , SMA
PoE (non standard)
Teltonika RMS
