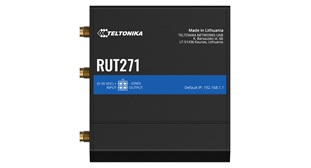

Teltonika RUT271 Industrial 5G RedCap Cellular Wi-Fi Router with Digital IO.
The Teltonika RUT271 is a Redcap 5G router, bridging the gap between 4G and full-capacity 5G. Supporting SA architecture, this 5G router can wirelessly support up to 50 end devices and features the low latency of 5G—at affordable pricing. The RUT271 supports Wi-Fi and is backward compatible with 4G LTE Cat 4. This industrial-grade RedCap 5G router is also equipped with WAN failover, two 10/100 RJ45 ports, a compact and durable design, and numerous other brilliant features for expert professional deployment.
The Teltonika RUT271 is a Redcap 5G router, bridging the gap between 4G and full-capacity 5G. Supporting SA architecture, this 5G router can wirelessly support up to 50 end devices and features the low latency of 5G—at affordable pricing. The RUT271 supports Wi-Fi and is backward compatible with 4G LTE Cat 4. This industrial-grade RedCap 5G router is also equipped with WAN failover, two 10/100 RJ45 ports, a compact and durable design, and numerous other brilliant features for expert professional deployment.
Features
- REDCAP 5G Low latency, high capacity, affordable pricing
- Backward compatible with 4G LTE Cat 4
- Wireless access point with Hotspot functionality
- Automatic switching to available backup connection with WAN failover
| Details | |
|---|---|
| Product code | RUT271002000 |
| Mobile module | 5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL |
| 3GPP Release | Release 17 RedCap |
| Bands | 5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79: 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B70, B71: 4G (LTE-TDD): B34, B38, B39, B40, B41, B42, B43, B48 |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 32 MB, NOR Flash |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Wireless mode | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Wi-Fi security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Monitoring & Management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O juggler | Allows to set certain I/O conditions to initiate event |
| Power Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | Idle: < 1.5 W, Max: < 3 W |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| SIM | 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder |
| Antennas | 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi |
| Reset | Reboot/User default reset/Factory reset button |
| Casing material | Aluminum housing, plastic panels |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Weight | 130 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory | CE, FCC, ISED, CB, WEEE |
| Details | |
|---|---|
| Includes | Router RUT271, 9 W PSU, 2x Mobile 5G antennas (swivel, SMA male), 1x Wi-Fi antenna (swivel, RP-SMA male), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide) |
Teltonika RMS
100Mbps
5G
RJ45 , RP-SMA , SMA
600-999MHz , 1700-2100MHz , 2.4GHz , 2.6GHz , 3GHz
PoE (non standard)
