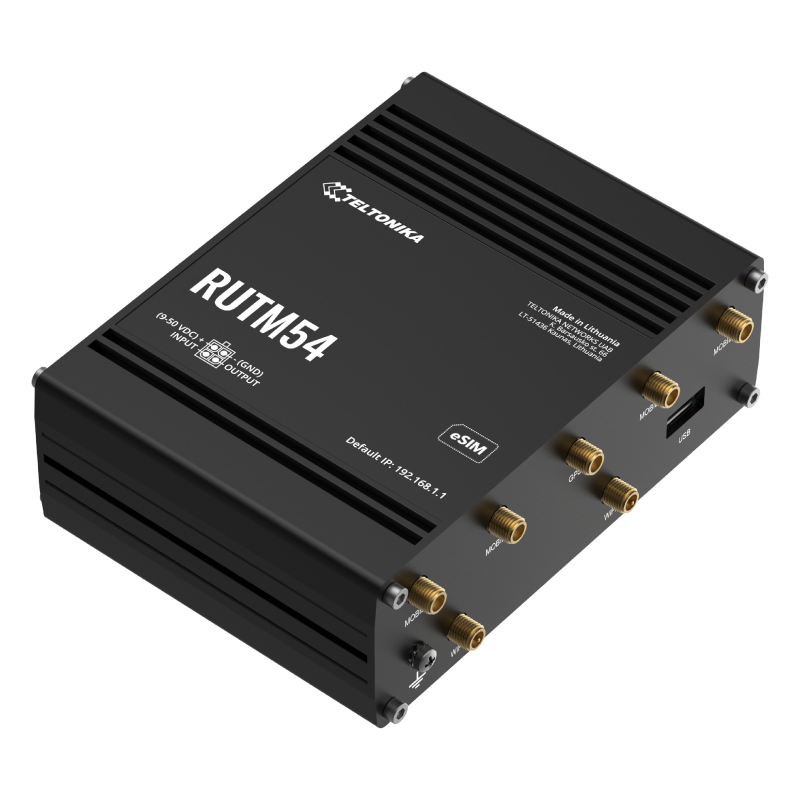

Teltonika RUTM54 Industrial Cellular 5G Wi-Fi Gigabit Router with Dual SIM, Dual Radio

$1,295.00 +GST

2 In Stock

SKU: RUTM54

Quantity	Price
1 - 4	$1 295.00
5 - 9	$1 262.63
10 - 19	$1 230.25
20+	$1 165.50

Data Sheet

Teltonika RUTM54 Industrial Cellular 5G Wi-Fi Gigabit Router with Dual SIM, Dual Radio plus eSIM

Warranty

Back to: WiFi Routers

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description
Reviews

Description

Specifications

Resources

Package Contents

Teltonika RUTM54 Industrial Cellular 5G Wi-Fi Gigabit Router with Dual SIM, Dual Radio plus eSIM.

The RUTM54 is a high-performance, dual-SIM and eSIM 5G router, ideal for data-intensive applications that demand reliable, high-speed connectivity. With a global Telit 5G modem, the RUTM54 delivers exceptional connectivity and consistent performance. Its 5 Gigabit Ethernet ports and dual-band Wi-Fi provide robust redundancy, while auto-failover ensures uninterrupted service. With backward compatibility to 4G and multiple interface options, the RUTM54 is designed for seamless expandability and future upgrades.

Features

5G - Ultra-high cellular speeds of up to 3.4 Gbps
DUAL SIM & eSIM - With auto failover, backup WAN and other switching scenarios
Supports both SA & NSA architectures to leverage the 5G infrastructure
Enjoy Remote Management with Teltonika RMS

Details
Product code	RUTM54
Mobile module	5G Sub-6Ghz SA/NSA 2.5/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1.6Gbps DL, LTE Cat 18 211Mbps UL; 3G – 42 Mbps DL, 5.7Mbps UL
3GPP Release	Release 16
eSIM	Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Wireless mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi users	Up to 150 simultaneous connections
WAN	1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
VPN	OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
MODBUS	Server or Client, HTTP(S)/MQTT/Azure MQTT
CPU	MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM	256 MB, DDR3
FLASH storage	16 MB serial NOR flash, 256 MB serial NAND flash
GNSS	GPS, GLONASS, BeiDou, Galileo and QZSS
Geofencing	Configurable multiple geofence zones
Input	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output	1 x Digital Output, Open collector output, max output 30 V, 300 mA
Status LEDs	4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
SIM	2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power	1 x 4-pin power connector
Antennas	4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
USB	1 x USB A port for external devices
Reset	Reboot/User default reset/Factory reset button
Other	1 x Grounding screw
Casing material	Anodized aluminum housing and panels
Dimensions (W x H x D)	132 x 44.2 x 95 mm
Weight	530 g
Mounting options	DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Details
Included	RUTM54 Router
Power	18 W PSU
Antennas	4 x Mobile antennas (swivel, SMA male), 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable), 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
Cable	Ethernet cable (1.5 m)
Other	SIM Adapter kit, QSG (Quick Start Guide)
