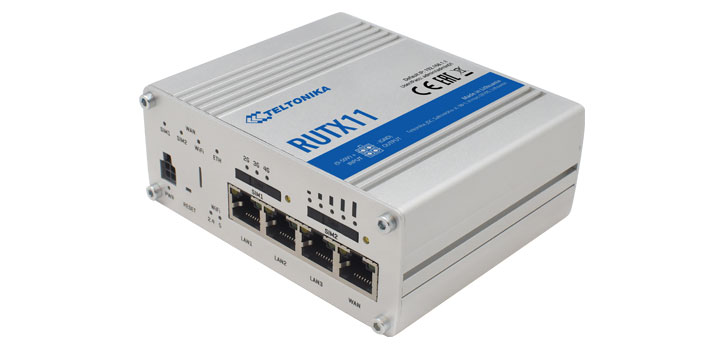

The Teltonika RUTX11 is the most feature rich among all the RUTX series devices. With a wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. The 4G (LTE) – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows seamless data transfer experience.
The Teltonika RUTX11 Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.
It is the most powerful and feature rich device within Teltonika Networking products range. Equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications.
The Teltonika RUTX11 Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.
It is the most powerful and feature rich device within Teltonika Networking products range. Equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications.
Features
- LTE Cat 6 with speeds up to 300 Mbps
- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
- Dual-SIM with auto Failover, Backup WAN and other SW feature
- Gigabit Ethernet with speeds up to 1000 Mbps
- Teltonika Remote Management System compatible
- RutOS – easy to use, secure and feature rich Operating System
- GPS Location
| Details | |
|---|---|
| Product code | RUTX11000200 |
| Mobile | 4G (LTE) – Cat 6 DL up to 300 Mbps, UL up to 50Mbps; DC-HSDPA; HSUPA; WCDMA |
| Supported Bands | 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41; 3G: B1, B3, B5, B8 |
| CPU | Quad Core ARM Cortex A7 717 MHz CPU |
| Memory | 256 MBytes Flash, 256 MBytes DDR3 RAM |
| Ethernet | 4 x 1 Gbit Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN |
| WiFi | Dual-Band 802.11ac Wave 2 (WiFi 5) with MU-MIMO support and data transmission rates up to 867 Mbps. |
| Power supply | 9 - 50 VDC, 4 pin DC connector |
| Power consumption | 11 W Max |
| Connectors | 1 x 4 pin DC, 4 x Ethernet, 2 x Mobile SMA, 2 x WiFi RP-SMA, 1 x GPS SMA |
| SIM | 2 x external SIM holders |
| Status LEDs | 1 x Power, 2 x SIM, 3 x Mobile network type, 5 x Signal Strength, 2 x WiFi band status, 1 x WiFi status, 8 x Ethernet status, 4 x WAN type LEDs |
| Operating temperature | -40 °C to 75 °C |
| Housing | Full aluminium with grounding terminal |
| Dimensions | 115 mm x 95 mm x 44 mm |
| Weight | 456 g |
| Operating system | RutOS (OpenWrt based Linux OS) |
| SIM switch | 2 SIM cards, auto-switch cases: data limit, roaming, no network, network denied, data connection fail |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS, GNSS coordinates via WebUI, SMS, TAVL, RMS |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet |
| Networking features | NAT, Static/Dynamic routing, Firewall, OpenVPN, IPSec, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Unique networking features | VLAN, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover |
| Connection monitoring | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Authentication | Pre-shared key, digital certificates, X.509 certificates |
| Keep settings | Update FW without losing current configuration |
| Monitoring & Management | WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| Details | |
|---|---|
| Power | NZ AC/DC power adapter 9 V 1 A, 4 pin plug included |
| GSM/WCDMA/LTE antenna | 2 x698~960/1710~2690 MHz, 50 Ω, VSWR<3, gain 3 dBi, omnidirectional, SMA male connector included |
| GNSS antenna | 1 x 1575.42~1602 MHz, 2.2~5 VDC, VSWR<1.5, active total gain** 28 dB (typ.), RHCP polarization, SMA male connector included |
Teltonika RMS
1Gbps
Wi-Fi 5
RP-SMA , SMA
600-999MHz , 1700-2100MHz , 2.4GHz , 5GHz
