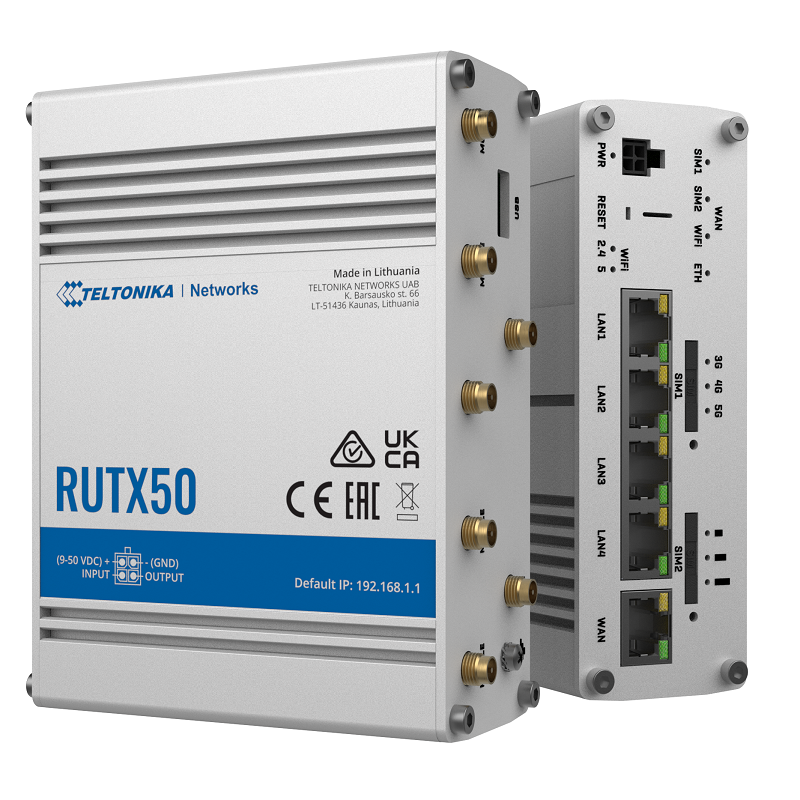

Teltonika RUTX50 Dual SIM Cellular 4G/LTE/5G Gigabit Wi-Fi Broadband Router with I/O and GPS. RUTX50 is your future-proof, multi-network industrial router, offering 5G mobile communication for high-speed broadband and data-heavy applications.
5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable ultra-low latency data transfer. The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, ensures adaptability for future upgrades and expansions.
RUTX50 comes with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with our Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices.
5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable ultra-low latency data transfer. The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, ensures adaptability for future upgrades and expansions.
RUTX50 comes with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with our Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices.
Features
- 5G Ultra-high cellular speeds of up to 3.3 Gbps
- SA & NSA Supports both architectures to leverage the 5G infrastructure
- Single-digit latency for mission-critical applications
- Uninterrupted communication with auto-failover Dual Sim
- Dual-band data throughput for up to 150 clients simultaneously
- Backward compatible with 4G (LTE CAT 20) and 3G network technologies
| Details | |
|---|---|
| Product code | RUTX50000000 |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB (100 MB available for userspace) |
| FLASH storage | 256 MB (80 MB available for userspace) |
| WAN | 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 4 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| I/Os | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs |
| SIM | 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
| Antennas | 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Power | 1 x 4-pin DC power connector |
| Input voltage range | 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max |
| PoE (passive) | Mode B, LAN1 Port, 9 - 50 VDC |
| Power consumption | Idle: <4 W, Max: <18 W |
| Mobile module | 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. |
| SMS/Call | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list |
| Band management | Band lock, Used band status display |
| APN | Auto APN |
| Bridge mode | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Gateway assigns its mobile WAN IP address to another device on LAN |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Wireless mode | 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| Casing material | Aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 533 g |
| Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
| Details | |
|---|---|
| Included | 1 x RUTX50 Router, 18 W Power Supply, 4 x Mobile antennas (swivel, SMA male), 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable), 1 x GNSS antenna (adhesive, SMA male, 3 m cable), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide) |
Teltonika RMS
100Mbps
5G , Wi-Fi 5 , GPS/GNSS
Contact , Data Logger , Tracker
RJ45 , RP-SMA , SMA , USB
600-999MHz , 1700-2100MHz , 2.4GHz , 3GHz , 5GHz
PoE (non standard)
