Description
Specifications
Resources
Package Contents

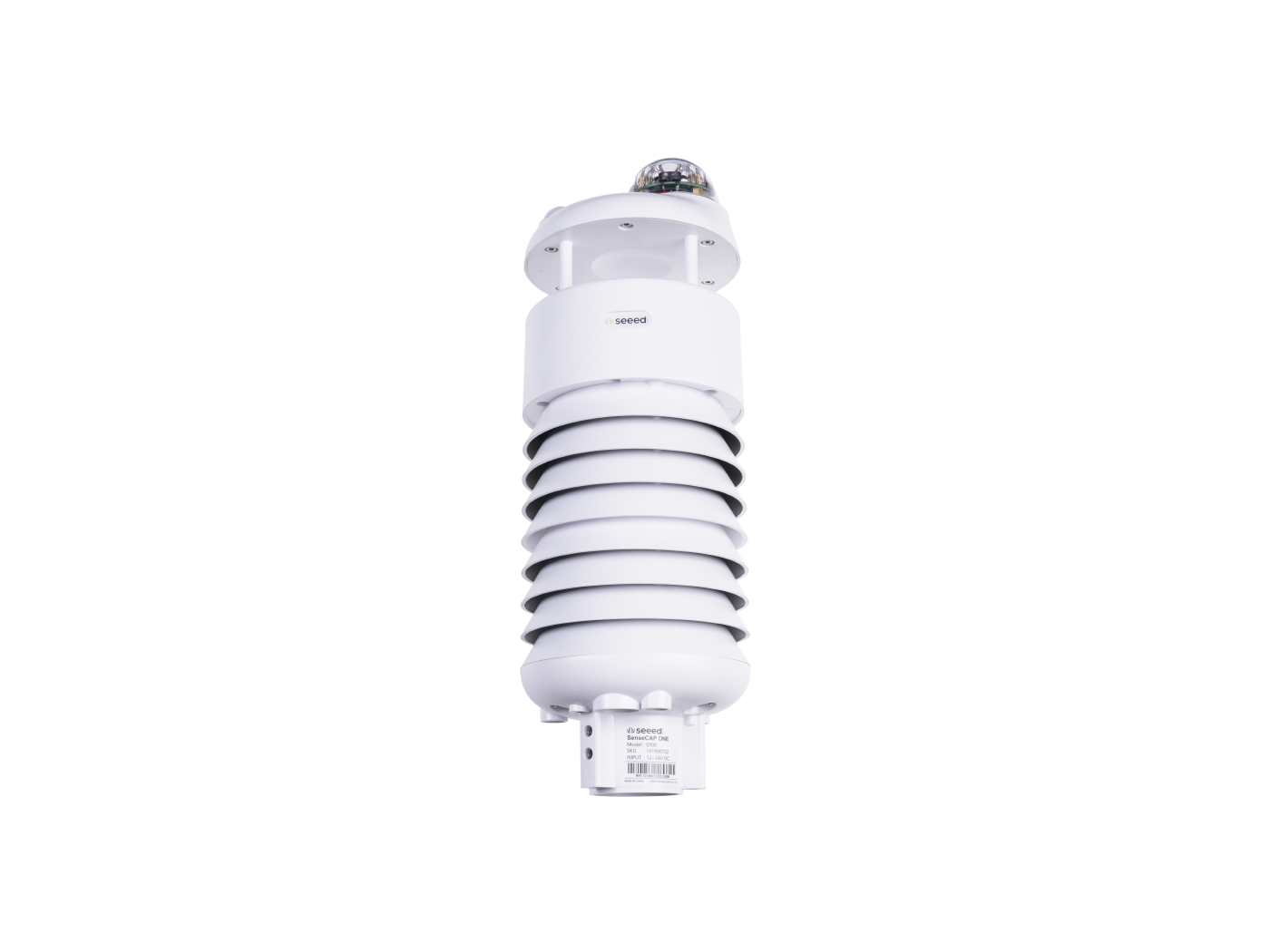

The Seeed SenseCAP ONE S900 9-in-1 Compact Weather Sensor can help you collect and monitor environmental and weather data, which are crucial in different application scenarios. The SenseCAP ONE S900 is equipped with sensors to measure nine parameters: air temperature, relative humidity, barometric pressure, light intensity, rainfall, PM2.5, PM10, wind speed, and wind direction
Seeed SenseCAP ONE is IP66 certified, and it features strong robustness to withstand even the toughest outdoor environment. The Sensors to measure wind speed and wind direction use ultrasound instead of traditional mechanical 3-cup or vane anemometer. The advantage of using ultrasonic sensors is that reducing the movable parts can make the sensor less likely to break and thereby is easier to be maintained without any sacrifices in precision or manpower.
The SenseCAP ONE series uses the RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12 communication protocol. Hence, the SenseCAP ONE compact weather sensor can be used with any datalogger that supports RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12.
We also stock the SenseCAP Sensor Hub 4G Data Logger which can be used with the SenseCAP ONE series weather sensor. The data can be transmitted to the Sensor Hub and then to the SenseCAP server or a private server. If you choose to use the SenseCAP server, we also provide an API for you to easily make your own applications.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Seeed SenseCAP ONE is IP66 certified, and it features strong robustness to withstand even the toughest outdoor environment. The Sensors to measure wind speed and wind direction use ultrasound instead of traditional mechanical 3-cup or vane anemometer. The advantage of using ultrasonic sensors is that reducing the movable parts can make the sensor less likely to break and thereby is easier to be maintained without any sacrifices in precision or manpower.
The SenseCAP ONE series uses the RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12 communication protocol. Hence, the SenseCAP ONE compact weather sensor can be used with any datalogger that supports RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12.
We also stock the SenseCAP Sensor Hub 4G Data Logger which can be used with the SenseCAP ONE series weather sensor. The data can be transmitted to the Sensor Hub and then to the SenseCAP server or a private server. If you choose to use the SenseCAP server, we also provide an API for you to easily make your own applications.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Measures 9 parameters: air temperature, relative humidity, barometric pressure, light intensity, precipitation intensity, PM2.5, PM10, wind speed, and wind direction
- Embedded with the electronic compass / magnetometer
- IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios
- Integrated heaters that can be switched on in extreme weather
- Ultrasonic wind speed & direction sensors without moving parts
- Optical rain gauge, compact in size and user-friendly
- Radiation shields are equipped to ensure accurate ambient measurement.
- Supported interface: RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12
- Calibrated and maintenance-free
| Details | |
|---|---|
| Product Model | 101990784 |
| Parameters Measured | air temperature, relative humidity, barometric pressure, light intensity, precipitation intensity, PM2.5, PM10, wind speed, and wind direction |
| Protocol | RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12 |
| Cable Length | 3m |
| Operating Temperature & Humidity | -40 °C ~ + 85 °C, 0 ~ 100%RH |
| IP Rating | IP66 |
| Device Weight | 2.39g |
| Air Temperature Range | - 40 °C ~ + 85 °C |
| Accuracy | ± 0.1℃ |
| Resolution | 0.01 ℃ |
| Air Humidity Range | 0 ~ 100% RH |
| Accuracy | ± 1.5% RH |
| Resolution | 0.01% RH |
| Barometric Pressure Range | 300 ~ 1250 hPa |
| Accuracy | ± 50 hPa |
| Resolution | 10 Pa |
| Light Intensity Range | 0 ~ 188000 Lux |
| Accuracy | ± 5% x (measurement value） |
| Resolution | 5 Lux |
| Wind Speed (Ultrasonic) Range | 0 ~ 60 m/s |
| Accuracy | ± 3% |
| Resolution | 0.1 m/s |
| Wind Direction (Ultrasonic) Range | 0 ~ 360 ° |
| Accuracy | ± 3° |
| Resolution | 0.1° |
| Rainfall Intensity (Optical) Range | 0 ~ 200 mm/h |
| Accuracy | ± 10% |
| Resolution | 0.02 mm/h |
| PM 2.5 Range | 0-1000μg per m3 |
| Accuracy | ± 10μg/m3 at 0-100μg/m3, ±10± at 0-100 |
| Resolution | 1μg/m3 |
| PM 10 Range | 0-1000μg per m3 |
| Accuracy | ± 15μg/m3 at 0-100μg/m3, ±15± at 0-100μg/m3 |
| Resolution | 1μg/m3 |
| Details | |
|---|---|
| Package Includes | 9 in 1 Sensor, Pole Top mounting Screws, M-12 connector cable, USB-C cable |
