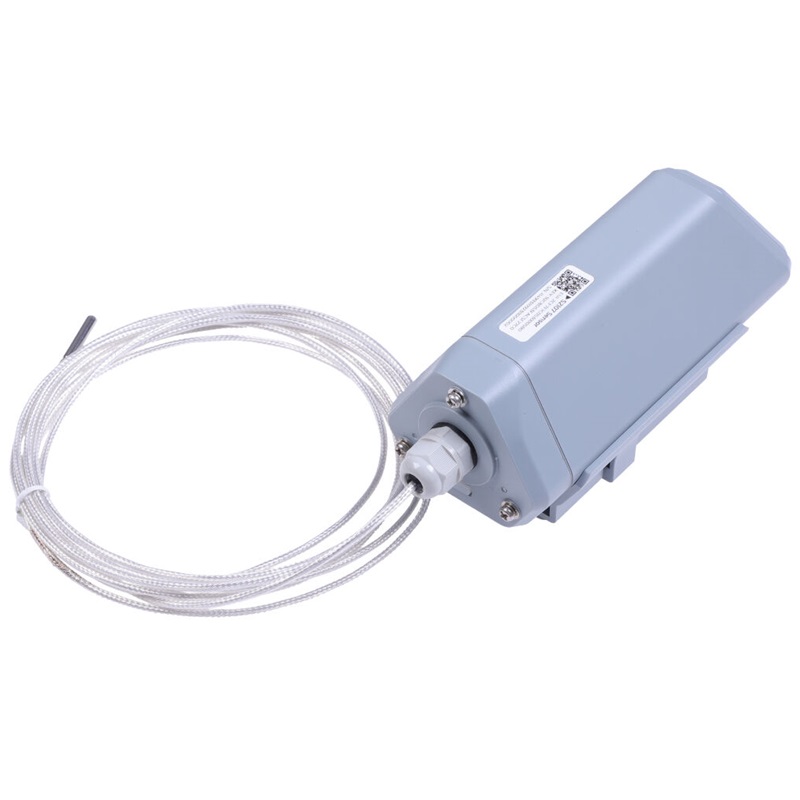

SenseCAP LoRaWAN AS923 S2107 temperature Sensor measures temperature at the range of -50°C to 300°C. A highly accurate temperature sensor PT1000 that can support temperature detection in wide temperature ranges and industrial scenarios.
Pt1000 sensors (1000 ohm temperature sensors) are the most common type of platinum resistance thermometer. The S2107 supports a three-wire circuit for PT1000 sensors and allows for the connection of up to three sensors simultaneously.
Direct contact temperature is an important indicator in many scenarios, especially in liquid detection, food monitoring, storage cold chain, industrial boilers, and aquaculture solutions. The S2107 is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. Benefiting from LoRa and IP66 design, this sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Pt1000 sensors (1000 ohm temperature sensors) are the most common type of platinum resistance thermometer. The S2107 supports a three-wire circuit for PT1000 sensors and allows for the connection of up to three sensors simultaneously.
Direct contact temperature is an important indicator in many scenarios, especially in liquid detection, food monitoring, storage cold chain, industrial boilers, and aquaculture solutions. The S2107 is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. Benefiting from LoRa and IP66 design, this sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature(LoRa DTU) and IP66-rated enclosure, the PT1000 probe can detect -50~300℃, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
- Compatible with Worldwide LoRaWAN Networks: Compatible with different types of
- Long Range & Battery powered: Ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes. Powered by easily replaceable standard Li-SOCl2 battery (type: ER34615) with Max.10 years of battery life.
- Simple Configuration and Calibration: SenseCAP provides a no-code experience that enables users to finish configuration and calibration through SenseCAP Mate APP.
| Details | |
|---|---|
| Product Model | SC-S2107 (114993078) |
| Range | -50 to 300 ℃ (Other range customization contact sales) |
| Accuracy | ±0.5℃ |
| Resolution | 0.1℃ |
| Microcontroller | Wio-E5 |
| Support Protocol | LoRaWAN v1.0.3 Class A |
| Built-in Bluetooth | App Tool to change parameters |
| LoRaWAN Channel Plan | AS923 (AS923_1, AS923_2, AS923_3, AS923_4) |
| Max Transmitted Power | 19dBm |
| Sensitivity | -136dBm@SF12 BW=125KHz |
| Communication Distance | 2 to 10 km (depending on gateway antenna and environments |
| IP Rating | IP66 |
| Operating Temperature | -40 to +85 °C (LoRa DTU);-50 to 200℃(Cable); -50 to 300℃ (Probe) |
| Operating Humidity | 0 to 100 %RH (non-condensing) |
| Device Weight | 360g |
| Cable Length | 3 meters |
| Battery Life | Up to 10 years** The battery life varies from data upload interval and distance between gateway |
| Battery Capacity | 19Ah (non-rechargeable) |
| Battery Type | Standard D-size SOCl2 Battery |
| Certification | CE / FCC / RoHS / TELEC |
| Details | |
|---|---|
| Package Includes | Sensor Node, Mounting Bracket, Quick Start Guide, KA4*20mm Self-drilling Screw |
