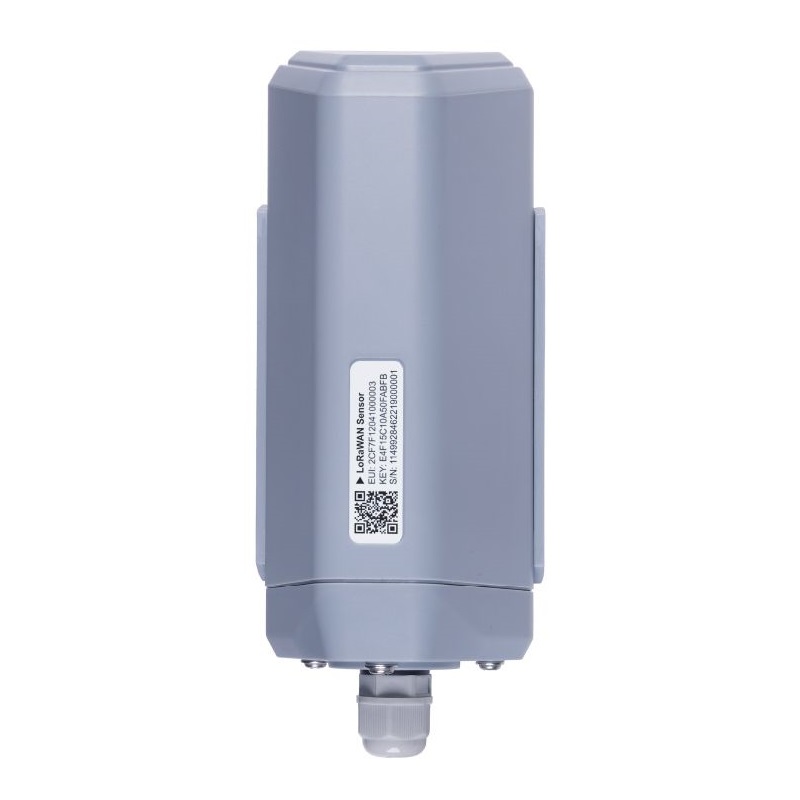

SenseCAP S2100 - LoRaWAN Data Logger/DTU, Supports RS485/Analog/GPIO Interfaces, LoRaWAN Converter.
A battery-powered IP66 wireless data logger/ DTU supports RS485/Analog/GPIO sensors, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management.
SenseCAP S2100 Data Logger/DTU can connect to MODBUS-RTU RS485/Analog/GPIO sensors and transmit data from sensors to the LoRaWAN network. Benefits from LoRa and IP66 design, this device features stability and reliability and can cover a long transmission range while keeping ultra-low power consumption, ideal for outdoor use. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. It can be battery-powered or connected to a 12V external power supply. When the 12V power supply is connected, the replaceable built-in battery is set to be used as the backup power supply. What's more, with the help of S2110 converter, S2100 Data Logger/DTU is able to connect to Grove Sensor, it is an ideal solution for developing, fast prototyping, and small deployment for DIY Industrial level LoRaWAN Sensors.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
A battery-powered IP66 wireless data logger/ DTU supports RS485/Analog/GPIO sensors, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management.
SenseCAP S2100 Data Logger/DTU can connect to MODBUS-RTU RS485/Analog/GPIO sensors and transmit data from sensors to the LoRaWAN network. Benefits from LoRa and IP66 design, this device features stability and reliability and can cover a long transmission range while keeping ultra-low power consumption, ideal for outdoor use. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. It can be battery-powered or connected to a 12V external power supply. When the 12V power supply is connected, the replaceable built-in battery is set to be used as the backup power supply. What's more, with the help of S2110 converter, S2100 Data Logger/DTU is able to connect to Grove Sensor, it is an ideal solution for developing, fast prototyping, and small deployment for DIY Industrial level LoRaWAN Sensors.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Strong Compatibility with different Sensors: supports all MODBUS-RTU S485/Analog(4~20mA/0~10V) / GPIO(level/pulse) sensors
- Compatible with Worldwide LoRaWAN Networks with LoRaWAN V1.0.3 protocol and can work with LoRaWAN gateway (support the universal frequency plan from 863MHz ~928MHz)
- Long Range & replaceable Battery powered wireless transmission, S2100 supports 19Ah built-in battery and external 12V DC to supply devices, and ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes
- Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP66 rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions
| Details | |
|---|---|
| Product Model | SenseCAP S2100 (114992872) |
| Microcontroller | Wio-E5 |
| Support Protocol | LoRaWAN v1.0.3 Class A |
| Current Input | 4 to 20 mA (2 channel) |
| Voltage Input | 0 to 10V (2 channel) |
| RS485 | RS485 Modbus-RTU Protocol |
| Built-in Bluetooth | App Tool to change parameters and set data conversion algorithm |
| Long-Range Channel Plan | IN865/EU868/US915/AU915/ AS923 (Every single device can support 7 frequency plans) |
| Max Transmitted Power | 19dBm |
| Sensitivity | -136dBm@SF12 BW=125KHz |
| Communication Distance | 2 to 10km (depending on and environment) |
| IP Rating | IP66 |
| Operating Temperature | -40 to +85 °C |
| Operating Humidity | 0 to 100 %RH (non-condensing) |
| Device Weight | 280g |
| Certification | CE / FCC / RoHS |
| Battery Life | Up to 10 years** |
| Battery Capacity | 19Ah (non-rechargeable) |
| Battery Type | Standard D-size SOCl2 Battery |
| Details | |
|---|---|
| Package Includes | Sensor Node, 2 x Bracket, Quick Start Guide, KA4*20mm Self-drilling Screw |
Bluetooth , LoRAWAN
Contact , Current , Data Logger
600-999MHz
