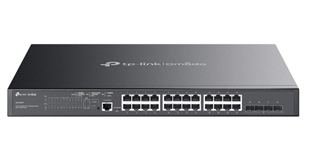

Omada SG3428MP 24 Port Gigabit PoE+ L2 Managed Switch with 4x SFP Ports

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

Omada SG3428MP 24 Port Gigabit PoE+ L2 Managed Switch with 4x SFP Ports.

Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Features

24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
384 W total PoE budget with up to 30 W PoE output per port
Centralized cloud management via the web or the Omada app
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

Details
Manufacturer's Code	SG3428MP
Interface	24× 10/100/1000 Mbps RJ45 PoE+ Ports, 4× Gigabit SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
Fan Quantity	2
Physical Security Lock	Yes
Power Supply	100-240 V AC~50/60 Hz
PoE Ports (RJ45)	Standard: 802.3at/af compliant, PoE+ Ports: 24 Ports (up to 30 W PoE Output per Port), Power Budget: 384 W
Dimensions ( W x D x H )	17.3×13.0×1.7 in (440×330×44 mm)
Mounting	Rack Mountable
Max. Power Consumption	480.1 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation	1637.14 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
MAC Address Table	16K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Centralized Management	Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
Management Features	Web-based GUI, Command Line Interface (CLI) through console port, telnet, SNMPv1/v2c/v3, Trap/Inform, RMON (1, 2, 3, 9 groups), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log
Operating Temperature	0–45 ℃ (32–113 ℉);
Storage Temperature	-40–70 ℃ (-40–158 ℉)
Operating Humidity	10–90% RH non-condensing
Storage Humidity	5–90% RH non-condensing
Certification	CE, FCC, RoHS
