Shireen RFC400 Cable 500ft Spool 50 Ohm Coax Cable

0 Rating
$545.00 +GST
16 In Stock
SKU: RFC400-500
QuantityPrice
1 - 4$545.00
5 - 9$531.38
10 - 19$517.75
20+$490.50
Shireen Inc RFC400 Cable 500ft. Spool 50 Ohm Coax Cable
Warranty
Same day shipping for orders placed before 3pm (NZDT), Free shipping on all orders $1000+gst*
Description
Specifications
Resources
Package Contents

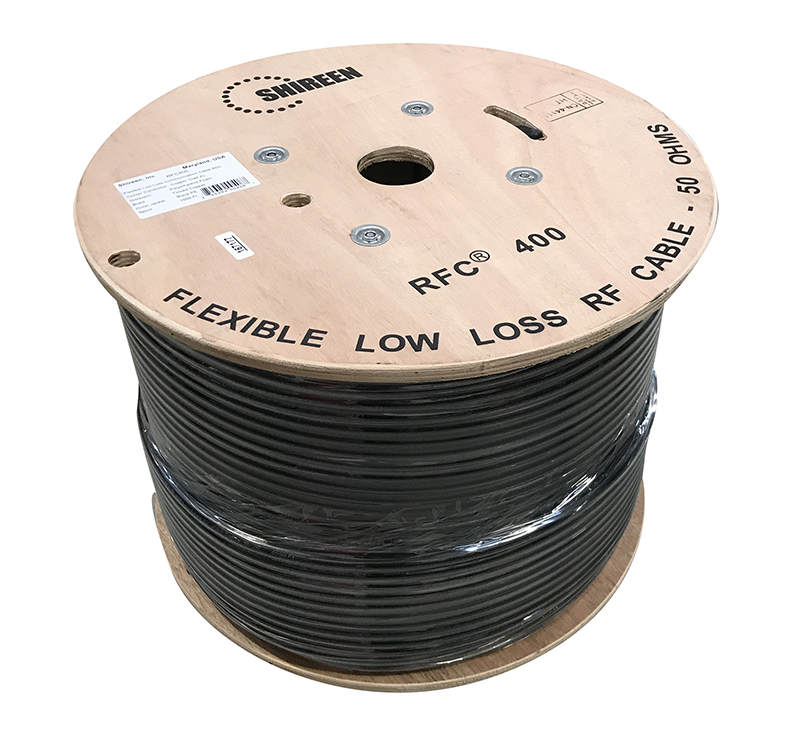

Shireen Inc RFC400 Cable 500ft. Spool 50 Ohm Coax Cable Drum.
Details
Manufacturer's Product CodeRFC400-500
Center ConductorSolid CCA
Conductor Dia.(+/-0.02mm)2.74
Min. Break Strength (N)640
InsulationFoamed Polyethylene
Insulation Dia.(+/-0.10mm)7.24
ColourNeutral
Centricity (%)=90
Adhesion10 to 100N @ 25mm
1st Outer ConductorBonded Aluminum Foil
Overlapping= 115%
Dia.(+/-0.10mm)7.39
2nd Outer ConductorTinned Copper Braid
Conductor Dia.(+/-0.01mm)0.15
No. of Wires192
Coverage (+/-3%)95
Outer JacketPE
Outer Dia (+/-0.10mm)10.29
Tensile strength= 16.2 N/mm2
Elongation at break= 700 %
Adhesion20 to 80N @ 50mm
Min. Bending Radius25.4 mm
Max. Pulling Tension740 N
Crush resistance of cable (load of 700N)< 1 %
Admissible Ambient TemperatureJacket -40~+85 deg C
Details
WarrantyStandard 12 Month RTB
