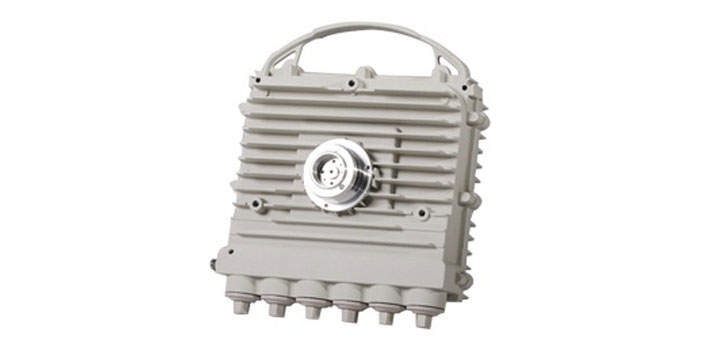

Siklu EtherHaul-1200FX ODU with antenna port; Tx High with 2 copper Ethernet, Power, POE and 1000Mbps Full Duplex TCP Throughput. The EtherHaul-1200 series delivers carrier-grade ultra-high capacity wireless point-to-point Ethernet. With up to 1000Mbps full-duplex over the uncongested 71-76/81-86GHz mmWave spectrum, the EH-1200 provides service providers and businesses around the world with an affordable, advanced wireless solution that is easy to install and maintain.
Characterized by pencil thin beams, E-band mmWave radios guarantee no interference and high reliability. The EH-1200 series has up to 32 non-over-lapping channels that are user selectable, making it the most scalable solution on the market for dense deployments.
The E-band spectrum is uncongested, even in dense urban areas. E-band offers low licensing fees and quick coordination processes, while maintaining the advantage spectrum protection.
High throughput and low latency combine to deliver fiber-like performance. Siklu’s EH-1200 series incorporates 8 levels of configurable QoS-aware, hitless adaptive bandwidth coding and modulation for high availability. An integrated L2 switch and extra ports enable implementation in resilient topologies like cascade or ring, without the need for additional equipment.
Characterized by pencil thin beams, E-band mmWave radios guarantee no interference and high reliability. The EH-1200 series has up to 32 non-over-lapping channels that are user selectable, making it the most scalable solution on the market for dense deployments.
The E-band spectrum is uncongested, even in dense urban areas. E-band offers low licensing fees and quick coordination processes, while maintaining the advantage spectrum protection.
High throughput and low latency combine to deliver fiber-like performance. Siklu’s EH-1200 series incorporates 8 levels of configurable QoS-aware, hitless adaptive bandwidth coding and modulation for high availability. An integrated L2 switch and extra ports enable implementation in resilient topologies like cascade or ring, without the need for additional equipment.
Features
- Business Broadband
- True Gigabit Full Duplex capacity
- Mobile Backhaul
- Campus Connectivity
- Video Surveillance Connectivity
| Details | |
|---|---|
| Product Code | EH-1200FX-ODU-H-EXT |
| Frequency & Duplexing | 71-76GHz / 81-86GHz, FDD |
| Modulation & Adaptive rate | 5 level of hitless adaptive bandwidth, coding and modulation - boost gain by up to 25dB |
| Throughput | Up to 1Gbps FDD |
| Interfaces | 2 x RJ45 |
| Ethernet Features | IEEE 802.1d transparent bridging, VLAN & VLAN stacking, 4K VLANs, MEF 9, 14 and 21 compliant Ethernet services, Smart Pipes Transparent Ports Mode, Link aggregation: LAG and LACP (IEEE 802.3ad), Ethernet Ring Protection Switching: ITU-T G.8032 ERPS, Link state propagation, 16KB Jumbo frames, Configurable QOS-aware forwarding, 8 level H-QoS with multi mapping options: L2: 802.1p, VLAN id., L2½: MPLS EXP, L3: DSCP |
| Synchronization | Synchronous Ethernet and 1588v2 TC |
| Power | PoE In PoE++ (IEEE 802.3at+) power consumption without PoE Out |
| Direct DC | 36÷57VDC (flexible grounding) |
| PoE-Out | Port 2 (IEEE 802.3at) 13W |
| Details | |
|---|---|
| Cable Entry | 2 x Short all weather cable entry protection |
| Earthing | Grounding cable with clamps (AWG8) included |
RJ45 , Waveguide
70/80GHz
1Gbps
Proprietary
PoE (802.3af/at)
