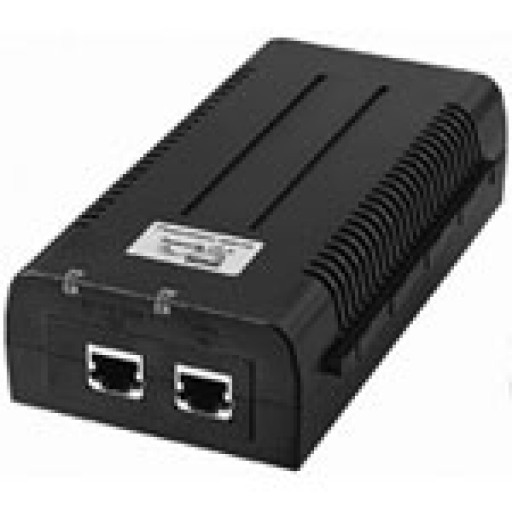

Made for Siklu the Microsemi’s PD-ACDC60G single port power injector offers a compact and cost-effective power solution for high power WLAN access points, network cameras and other IP terminal installations. The ACDC60G converts AC power to 55VDC; the DC power is then provided over the Ethernet cable. The PD-ACDC60G supports up to 10/100/1000Mbps pass through data rates and includes hardware protection such as Overload protection and Short-Circuit protection. The single port injector can be powered via universal AC input and can provide up to 60W on 4 pairs.
Features
- Output power of 60W over 4-pairs is guaranteed
- Supports 10/100/1000Base-T applications
- Plug-and-play installation
- Compact design fits easily in WLAN access point and IP camera installations
- Not 802.3af/at compliant
- Compatible with Siklu 500TX, 600TX, 700TX, 710TX, 1200TX, 1200FX, 2x00FX, 2x00FX, 5500FD, 8010FX
| Details | |
|---|---|
| Product Code | EH-60W-AC-PoE-EU/AUS/JP |
| No. of Ports | 1 |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Power over Ethernet Output | Pin Assignment and Polarity:Data Pairs 1/2 (-) and 3/6 (+),Spare Pairs 7/8 (-) and 4/5 (+),Output Power Voltage: 55 VDC,User Port Power: 60W over 4-pairs (Guaranteed) |
| Input Power Requirements | AC Input Voltage: 100 to 240 VAC, AC Input Current: 1.5A @100-240 VAC, AC Frequency: 50 to 60 Hz |
| Dimensions | 62 mm (W) x 38 mm (H) x 151 mm (L) |
| Weight | Bare unit: 320g |
| Indicators | AC Power: Yellow, Channel Power Indicator: Green |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Operating Ambient Temperature | 14º to 104ºF (-10ºC to 40ºC) @60W, 14º to 131ºF (-10ºC to 55ºC) @30W |
| Operating Humidity | Maximum 90%, Non-condensing |
| Storage Temperature | –4º to 158ºF (–20º to 70ºC) |
| Storage Humidity | Maximum 95%, Non-condensing |
| Reliability | MTBF: 240,000 hrs. @25ºC |
| Thermal Rating | 30 BTU/Hr (@100Vac) |
| Warranty | 1-year |
| Regulatory | RoHS Compliant, WEEE Compliant, CE |
| Electromagnetic Emission & Immunity | FCC Part 15, Class B, EN 55022 Class B (Emissions), EN 55024 (Immunity), VCCI |
| Safety Approvals | UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1 |
| Details | |
|---|---|
| Power Cable | Inlcuded |
1Gbps
RJ45
PoE (non standard) , POE (802.3bt)
