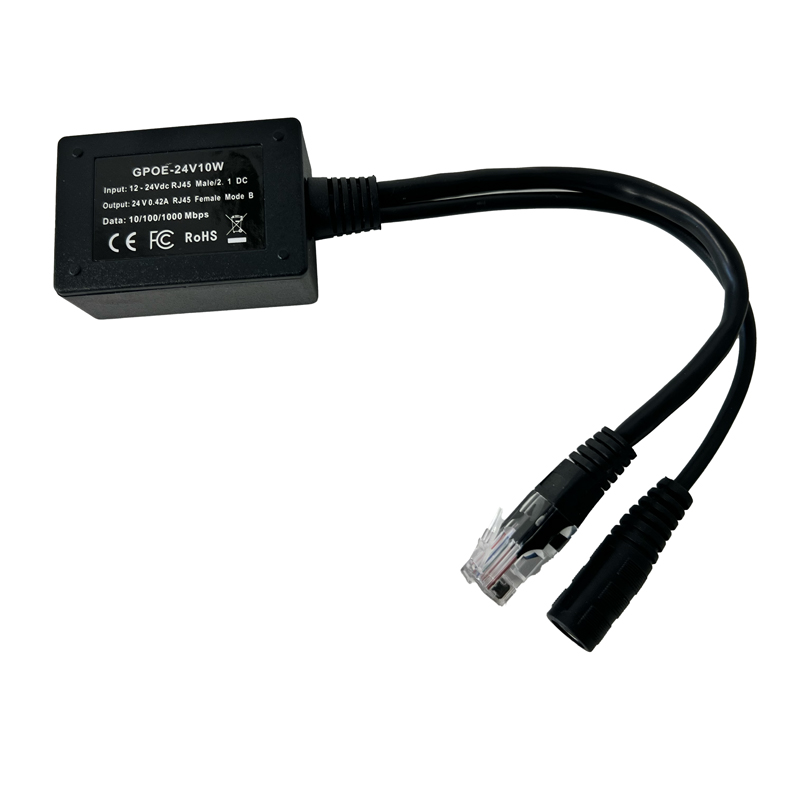

PoE World GPOE-24v10w PoE Inline Converter for 12 - 30V Solar in to 24V Passive PoE Out. This device provides a low cost solution for delivering battery or 12v power to a 24 volt device over 328ft of network cable. This scheme allows power to be carried on 10/100/1000 networks on CAT5E, CAT6 or CAT7 Ethernet network cable. Power into the device is either from the 2.1mm DC connector – OR – from the RJ45 male pins 4,5 + (plus) and 7,8 – (minus). The device passes 10/100/1000 Ethernet.
If power is applied to the 2.1mm input – power will be isolated from the male RJ-45 – so the male Rj45 can be plugged into a switch or router. The output voltage of 24 volts comes on pins 4,5 + (plus) and 7,8 –(minus) of the female RJ-45 in order to power any mode B device. If the source power is from 10v to 24v, and the output voltage is 24 volts, if the source is greater than 24.7v, the output will be equal to the input minus 0.7 volts. For example, a 30.7 volt input will cause the output to be 30 volts
If power is applied to the 2.1mm input – power will be isolated from the male RJ-45 – so the male Rj45 can be plugged into a switch or router. The output voltage of 24 volts comes on pins 4,5 + (plus) and 7,8 –(minus) of the female RJ-45 in order to power any mode B device. If the source power is from 10v to 24v, and the output voltage is 24 volts, if the source is greater than 24.7v, the output will be equal to the input minus 0.7 volts. For example, a 30.7 volt input will cause the output to be 30 volts
| Details | |
|---|---|
| Product Code | GPOE-24V10W |
| Input Voltage | 12-24VDC |
| Data + Power in | RJ45 male connector - Mode B |
| DC input connector | 2.1mm x 5.5mm adapter - Center + |
| Data + Power out | RJ45 Female connector - Mode B |
| Network Type | 10/100/1000 |
| Data Pins | All 4 pairs |
| Power Pins input | 4 & 5 + and 7 & 8 - |
| Input Voltage | 8v to 24 volts DC (Step Up), 24 to 30 volts DC (Pass thru) |
| Output Voltage | 24v +- 2% at .42 amps |
| Input Current | 8 volts (10 watts 1.3A), 12 volts (10 watts 0.9A), 24 volts (10 watts 0.42A), 30 volts (10 watts 0.33A) |
| Power Pins Out | 4 & 5 + and 7 & 8 - Mode B |
| Operating Temperature | 0°C ~ 50°C |
| Details | |
|---|---|
| Power Supply | Sold Separately |
1Gbps
RJ45
PoE (non standard)
