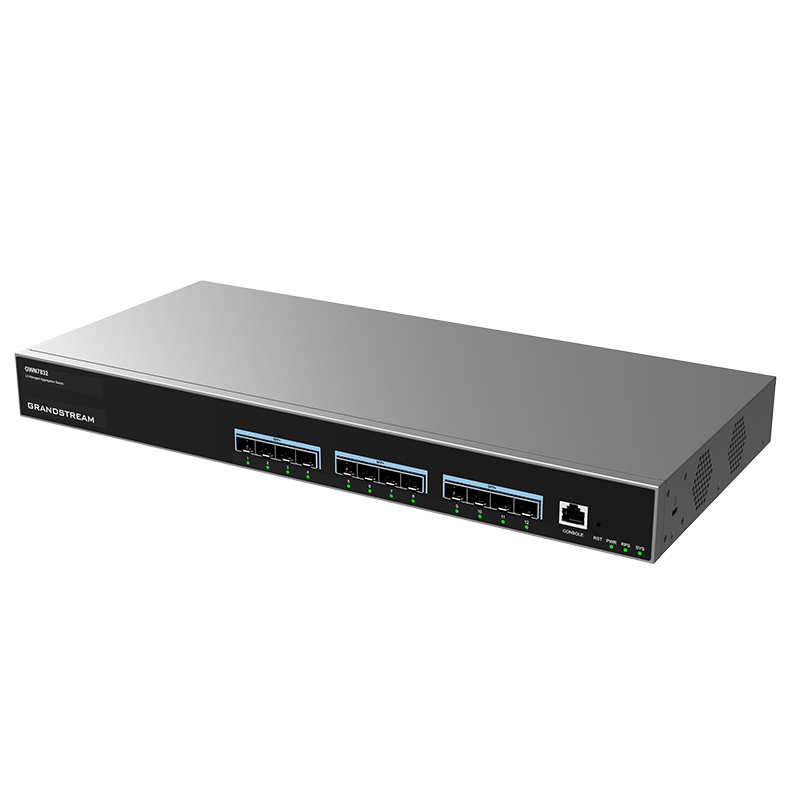

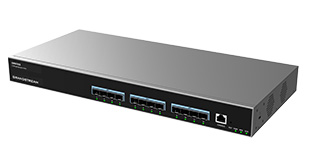

Grandstream GWN7832 Enterprise Layer 3 Managed Aggregation Switch, 12 x SFP+, Redundant PSU Support.
The GWN7830 Series are Layer 3 aggregation managed switches that allow enterprises to build scalable, secure, high performance and smart business networks that are fully manageable and support maximum capacity. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7830 series can be managed in several ways, including the local Web user interface of the switch, and CLI, the command line interface. This series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service, flexible security settings, and support for maximum network capacity, the GWN7830 Series provides enterprise-grade Layer 3 aggregation switches ideal for medium-to-large deployments.
The GWN7830 Series are Layer 3 aggregation managed switches that allow enterprises to build scalable, secure, high performance and smart business networks that are fully manageable and support maximum capacity. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7830 series can be managed in several ways, including the local Web user interface of the switch, and CLI, the command line interface. This series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service, flexible security settings, and support for maximum network capacity, the GWN7830 Series provides enterprise-grade Layer 3 aggregation switches ideal for medium-to-large deployments.
Features
- 12 x 10Gigabit SFP+ ports
- Supports deployment in IPv6 and IPv4 networks
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
- Built-in QoS allows for prioritization of network traffic
- Supports a 12V DC Redundant Power Supply (Sold Separately)
| Details | |
|---|---|
| Manufacturer's Code | GWN7832-AU |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| Gigabit Ethernet Ports | Nil |
| Gigabit SFP Ports | Nil |
| 10 Gigabit SFP+ Ports | 12, Note: Support DAC Cable and must be ≤ 5m |
| Maximum no. of Supported Modules | SM-10G: 12, MM-10G: 12, RJ45-10G: 6, Note: RJ45-1G, RJ45-10G modules must be interval inserted |
| Console | 1 |
| Integrated Power Supply | 60W |

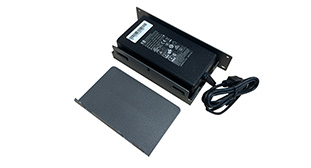

| External Redundant Power Supply (RPS) | 12V/60W (Sold Separately) |
| Auxiliary Ports | 1 x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 120Gbps |
| Switching Capability | 240Gbps |
| Forwarding Rate | 80.352Mpps |
| Packet Buffer | 16Mb |
| Network Latency | 2µs |
| Switching | 32K MAC addresses, including static, dynamic and filtering MAC address, 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN, VLAN virtual interface, GVRP(pending), 6 link aggregation, Spanning tree, 64 instances for STP/RSTP/ MSTP |
| Routing | Static routing, Dynamic routing, including RIP, RIPng, OSPF and OSPFv3, Policy routing(pending) |
| Multicast | IGMP Snooping with IGMPv2 and IGMPv3, MLD Snooping with MLDv1 and MLDv2, MVR(pending) |
| QoS/ACL | Port priority, Priority mapping, Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ, Traffic shaping, Rate limit, 4K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, Option 82, 60, 160 and 43 |
| Maintenance | CPU and memory monitoring, fault detection and alarm for power supply and fan, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
| Mounting | Desktop, Wall-Mount or Rack-Mount (rack-mounting kits included) |
| System LEDs | 1 x tri-color LED for device tracking and status indication |
| Power Supply LEDs | 2x bi-color LEDs for per power supply PWR&RPS |
| Data Transferring LEDs | 12x bi-color LEDs for 1G/10G |
| Fan | 2 |
| Environmental | Operation: 0°C to 45°C, humidity 10% to 90% RH (Non-condensing), Storage: -10°C to 60°C, humidity: 10% to 90% RH (Non-condensing) |
| Dimensions | 440mm(L)x200mm(W)x44mm(H) |
| Unit Weight | 2.67Kg |
| Details | |
|---|---|
| Included | 1x Switch, 1x 1.2m (10A) AC Cable, 1x 25cm Ground Cable, 4x Rubber Footpads, 1x Power Cord Anti-Trip, 2x Extended Rack-Mounting Kits, 8x Screws (KM 3*6), Quick Installation Guide |
| Redundant Power Supply | Sold Separately |
GDMS/GWN Cloud
RJ45 , SFP+
PoE (802.3af/at)
