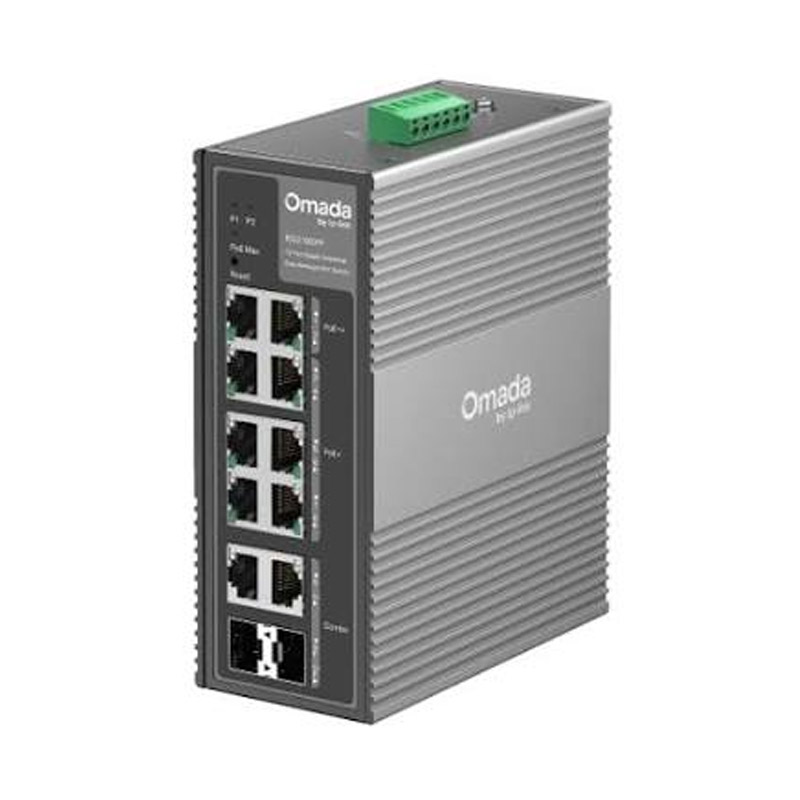

Omada IES210GPP 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++.
Industrial-Grade Protection Built for Harsh Environments with -40°C to 75°C Operating Temperature, 6kV Lightning Protection and an Industrial-Grade IP40 Aluminum Casing.
Enhanced Networking Stability and Security
1+1 Redundant Power Input
Equipped with dual power input ports and a wide 12-57V DC voltage range, ensuring continuous operation even if one power supply fails. Real-Time Fault Alarm.
Gigabit PoE++ Ports for Reliable High-Power Device Support.
Easy Operation and Maintenance with Omada’s Free Cloud Management.
Industrial-Grade Protection Built for Harsh Environments with -40°C to 75°C Operating Temperature, 6kV Lightning Protection and an Industrial-Grade IP40 Aluminum Casing.
Enhanced Networking Stability and Security
1+1 Redundant Power Input
Equipped with dual power input ports and a wide 12-57V DC voltage range, ensuring continuous operation even if one power supply fails. Real-Time Fault Alarm.
Gigabit PoE++ Ports for Reliable High-Power Device Support.
Easy Operation and Maintenance with Omada’s Free Cloud Management.
Features
- 8× Gigabit RJ45 Ports (2× PoE++, 6× PoE+)
- 2× Gigabit Combo RJ45/SFP Slots
- 240W Power Budget* with up to 60W for Each PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 250m PoE (with extend mode - 10mbps), VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
| Details | |
|---|---|
| Manufacturer's Code | IES210GPP |
| Interface | 2× 10/100/1000 Mbps PoE++ RJ45 Ports; 6× 10/100/1000 Mbps PoE+ RJ45 Ports; 2× Gigabit SFP/RJ45 Combo Ports |
| Flash | 64 Mbit |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber); IEEE 802.3x: Flow Control; IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering; IEEE 802.1q: Virtual Bridged Local Area Networks; IEEE 802.1d: Spanning Tree Protocol; IEEE 802.1w: Rapid Spaning Tree Protocol; IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP) |
| PoE Standard | 802.3 af/at/bt |
| PoE Ports | Port 1-2, up to 60 W per port; Port 3-8, up to 30 W per port |
| PoE Power Budget | 60 W (Input: 12 V / 7.2 A - 21 V / 3.7 A); 120 W (Input: 21 V / 6.7 A - 46 V / 3.1 A); 240 W (Input: 46 V / 5.7 A - 57 V / 4.4 A) |
| Fast PoE | Yes |
| Perpetual PoE | Yes |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Transmission Method | Store and Forward |
| Jumbo Frame | 15 KB |
| Power Input | 12-57V Dual Redundant DC Power Input |
| Overload Current Protection | Yes |
| Overload Voltage Protection | Yes |
| Reverse Polarity Protection | Yes |
| Standby Power Consumption | 5.64 W max @ 12 VDC; 6.17 W max @ 24 VDC; 5.95 W max @ 48 VDC |
| Max Power Consumption | 85.74 W (with 60 W PD connected @ 12 VDC); 139.75 W (with 120 W PD connected @ 24 VDC); 258.33 W (with 240 W PD connected @ 48 VDC) |
| Fault Relay | 24 V / 1 A Max. (Normally closed contact) |
| MTBF | 446898 h @ 25°C |
| Max Heat Dissipation | 291.52 BTU/hr (with 60 W PD connected @ 12 VDC); 475.15 BTU/hr (with 120 W PD connected @ 24 VDC); 878.32 BTU/hr (with 240 W PD connected @ 48 VDC) |
| Dimensions | 155 × 120 × 60 mm |
| Net Weight | 1.18 kg |
| Fan Quantity | Fanless |
| Installation | DIN-rail mounting / Wall mounting |
| IP Rating | IP40 |
| Operating Temperature | -40 °C to 75 °C |
| Storage Temperature | -40 °C to 85 °C |
| Operation Humidity | 5% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
| Surge Protection | ±6 kV in common mode for Ethernet ports; ±4 kV in common mode for DC power input ports |
| ESD Protection | Air: ±8 kV, Contact: ±6 kV |
| Certification | CE, FCC, RoHS |
| EMC | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 4 kV; Signal: 6 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF: 100 A/m; EN 55032/35; EN61000-6-2; EN61000-6-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| SDN Support | Support Hardware Controller; Software Controller; Cloud-Based Controller; Automatic |
| Details | |
|---|---|
| Included | IES210GPP, DIN-Rail Mounting Bracket, Wall-Mounting Plates, Installation Guide |
