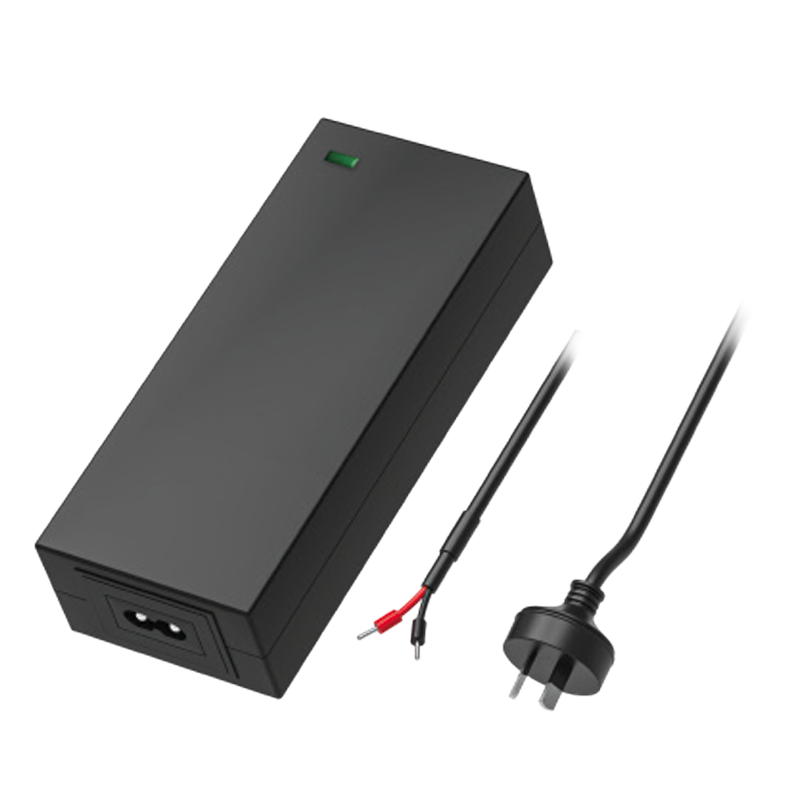

Teltonika AU 2-pin power supply, 62W for TSW200 PoE Switch
| Details | |
|---|---|
| Manufacturer's Product Code | PR320AUA |
| Input voltage | 100 - 240 VAC |
| Input frequency | 50/60 Hz |
| Input current | 1.5 A |
| Input connector | AU (Type I) |
| Output voltage | 48 VDC |
| Output current | 1.3 A |
| Output connector | 2-PIN, with cord end terminals |
| Input voltage absolute maximum | 90 - 264 VAC |
| Input frequency absolute maximum | 47 - 63 Hz |
| Maximum input inrush current | 50 A |
| Output voltage absolute maximum | 45.6 - 50.4 VDC |
| Short circuit protection | Yes |
| HIPOT (dielectric withstand test) | Primary to Secondary: 4000 VDC |
| MTBF | 50000 h |
| Certification | Safety: AS/NZS 61558.1:2008 + A1:2009 + A2:2015, AS/NZS 61558.2.16:2010 + A1:2010 + A2:2012 + A3:2014, EMC: AS/NZS CISPR 14:2013 |
