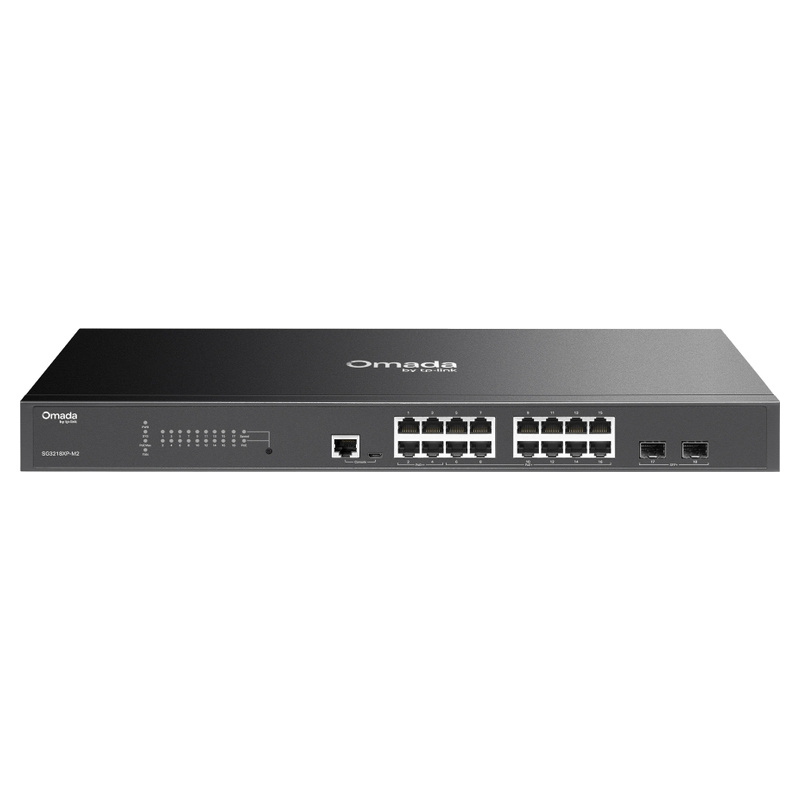

The Omada SG3218XP-M2 Access Pro is a 16-Port 2.5G and 2-Port 10GE SFP+ Switch with 4-Port PoE++ & 12-Port PoE+.
Features
- 4× 2.5G PoE++ ports (up to 90 W PoE out per port)
- 12× 2.5G PoE+ ports (up to 30 W PoE out per port)
- 2× 10G SFP+ slots
- 240 W total PoE budget
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
| Details | |
|---|---|
| Manufacturer's Code | SG3218XP-M2 |
| Interface | 16× 2.5 Gbps RJ45 Ports (4× PoE++, 12× PoE+), 2× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| Power Supply | 100-240 V~ 50/60 Hz |
| PoE Ports (RJ45) | Standard: 802.3af/at/bt compliant, PoE++ Ports (802.3af/at/bt PoE): 4 Ports, up to 90 W per port, PoE+ Ports(802.3af/at PoE): 12 Ports, up to 30 W per port, Power Budget: 240 W, Fast PoE, Perpetual PoE |
| Dimensions ( W x D x H ) | 440 × 180 × 44 mm |
| Surge Protection | 6 kV |
| Mounting | Rack Mountable |
| Max. Power Consumption | 291.16 W (110V/60Hz)(with 240 W PD connected) |
| Max. Heat Dissipation | 989.94 BTU/h (110 V/60 Hz)(with 240 W PD connected) |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Switching Capacity | 120 Gbps |
| Packet Forwarding Rate | 89.28 Mpps |
| MAC Address Table | 16 K |
| Certification | CE, FCC, RoHS |
| Operating Temperature | -5–50 ℃ (23–122 ℉); |
| Storage Temperature | -40–70 ℃ (-40–158 ℉) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| Details | |
|---|---|
| Included | SG3218XP-M2 Switch, Power Cord, Console Cable, Mounting Brackets, Rubber Feet, Screws, Quick Installation Guide |
Omada
RJ45 , SFP+
PoE (802.3af/at) , POE (802.3bt)
