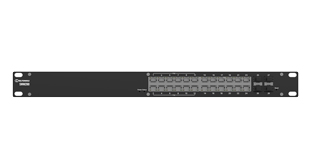

Teltonika SWM280 Managed 24x 1GbE + 4 x SFP, Half PoE (12x PoE) Ethernet Switch
The Teltonika SWM280 is a powerful L2 managed switch with L3 features for advanced network control. Designed for high-performance connectivity, this 24-port switch combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP ports. The PoE+ supply up to 30 W per port and a total power budget of 300 W. The SWM280 supports PROFINET & other industrial protocols, enabling flexibility over management and power supply.
The Teltonika SWM280 is a powerful L2 managed switch with L3 features for advanced network control. Designed for high-performance connectivity, this 24-port switch combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP ports. The PoE+ supply up to 30 W per port and a total power budget of 300 W. The SWM280 supports PROFINET & other industrial protocols, enabling flexibility over management and power supply.
Features
- PoE+: Deliver power and data through 12 PoE+ ports with up to 30W per port
- L2+: Advanced routing protocols & VLAN segmentation
- Cloud-enabled: Shipped with 2 years of RMS Management
- Protocols: Profinet, MRP, and EtherNet/IP for mixed industrial environments
| Details | |
|---|---|
| Product code | SWM280000001 |
| Ethernet | 24 x RJ45 ports, 10/100/1000 Mbps |
| Fiber | 4 x SFP ports |
| Profinet | Profinet Class B conformance |
| CPU | Realtek, single core, 500MHz, MIPS-4KEc |
| RAM | 128MB, DDR3 |
| FLASH storage | 16 MB serial flash |
| Bandwidth (Non-blocking) | 56 Gbps |
| Forwarding rate | 83.33 Mpps |
| Packet buffer | 512 KB |
| MAC address table size | 8K entries |
| Jumbo frame support | 10000 bytes |
| PoE+ ports | Port 1-12 |
| PoE standards | IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 300 W |
| Input voltage range | 100-240 VAC, 50/60 Hz |
| Power consumption | Idle: 7.5 W / Max: 325 W / PoE Max: 300 |
| Status LEDs | 1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs |
| Power | 1 x C14 connector |
| Reset | Software reset button |
| Other | 1 x Grounding screw |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 483 x 44 x 234 mm |
| Weight | 1842 g |
| Mounting options | Rack mounting kit |
| Operating temperature | 0 °C to 50 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory | CE, UKCA, CB, RCM, FCC, IC |
| Details | |
|---|---|
| Included | 1x SWM280 and Quick Start Guide |
| Power Cable | 1x IEC Power Cord Included |
Teltonika RMS
RJ45 , SFP
PoE (802.3af/at)
