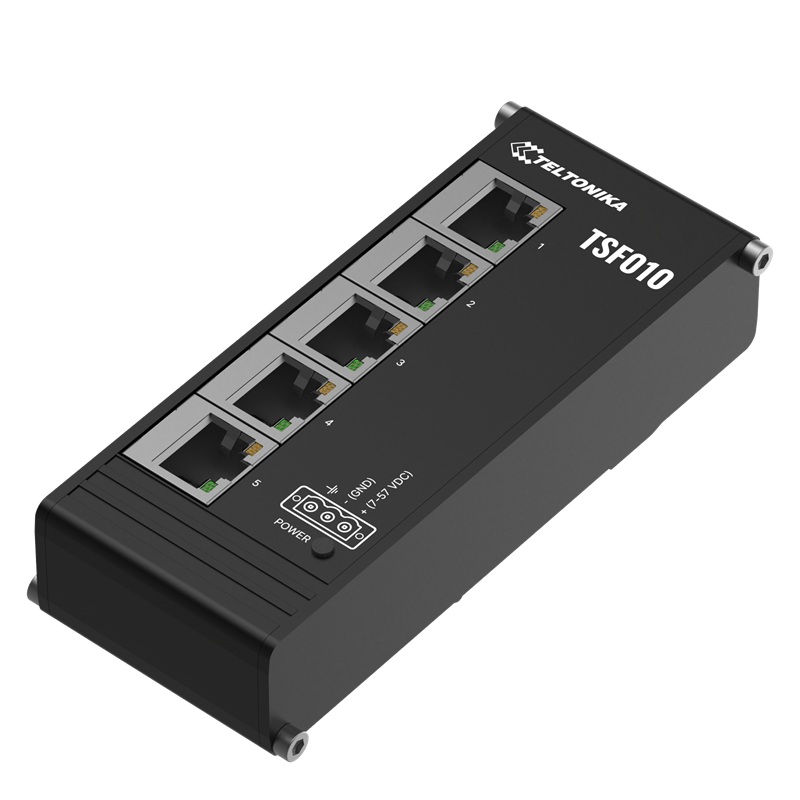

Teltonika TSF010 Flat Industrial 5 Port 10/100 Mbps Switch

$88.00 +GST
Login for your price
3 In Stock
SKU: TSF010
QuantityPrice
1 - 4$88.00
5 - 9$85.80
10 - 19$83.60
20+$79.20
Teltonika TSF010 Flat Industrial 5 Port 10/100 Mbps Switch, Integrated DIN rail bracket
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Description
Specifications
Resources
Package Contents
The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

Features
  • 3-PIN Power Input Flexible and tailor-made for industrial use
  • Flat and compact design weighing only 142g
  • Integrated DIN Rail bracket for easy mounting for plug-and-play deployment
  • 7-57 VDC Suitable voltage range for industrial applications
Details
ETHERNET5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
ProfinetProfinet Class A conformance (available with optional order code)
Bandwidth (Non-blocking)10 Gbps
Packer buffer128 KB
MAC address table size2K entries
Jumbo frame support9216 bytes
Power Connector3-pin industrial DC power socket (Power Supply not Included)
Input voltage range7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current
Power consumptionIdle: 1 W / Max: 1.5 W
Status LEDs1 x Power LED, 10 x ETH status LEDs
GroundingGrounding terminal on power connector
Casing materialAnodized aluminum housing and panels
Dimensions (W x H x D)113 x 28 x 50 mm
Weight142 g
Mounting optionsIntegrated DIN rail bracket
Operating temperature-40 °C to 75 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP30
Details
IncludedTSF010, 3-pin power connector, QSG (Quick Start Guide)
100Mbps
RJ45
