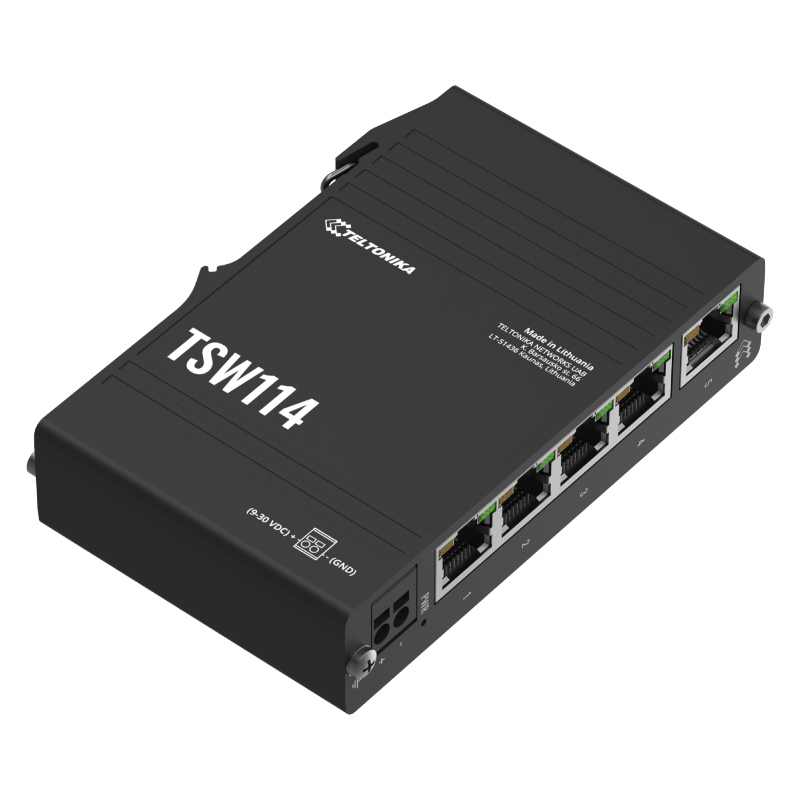

Teltonika TSW114 Gigabit DIN Rail Ethernet Switch w/ 5 x 10/100 Ethernet ports is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.
Features
- 5x Gigabit Ethernet Ports
- Plug and Play, no configuration needed
- Integrated DIN rail bracket and surface mounting options
- Anodized aluminium housing and panels
Details | |
---|---|
Product code | TSW114 |
Ports | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
Profinet | Profinet Class A conformance (available with optional order code) |
Bandwidth (Non-blocking) | 10 Gbps |
Packer buffer | 128 KB |
MAC address table size | 2K entries |
Jumbo frame support | 9216 bytes |
Power Connector | 2-pin industrial DC power socket |
Input voltage range | 9 – 30 VDC |
PoE (passive) | Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
Power consumption | Idle: 0.3 W / Max: 2.3 W |
Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
Casing material | Anodized aluminum housing and panels |
Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
Weight | 174 g |
Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
Operating temperature | -40 °C to 75 °C |
Operating humidity | 5% to 95% non-condensing |
Ingress Protection Rating | IP30 |
Regulatory | CE, UKCA, FCC, IC, CB, RCM, CITC, REACH, RoHS, WEEE |
Details | |
---|---|
Included | 1 x TSW114, QSG (Quick Start Guide) |
Power Supply | Not Included |
100Mbps , 1Gbps
RJ45
