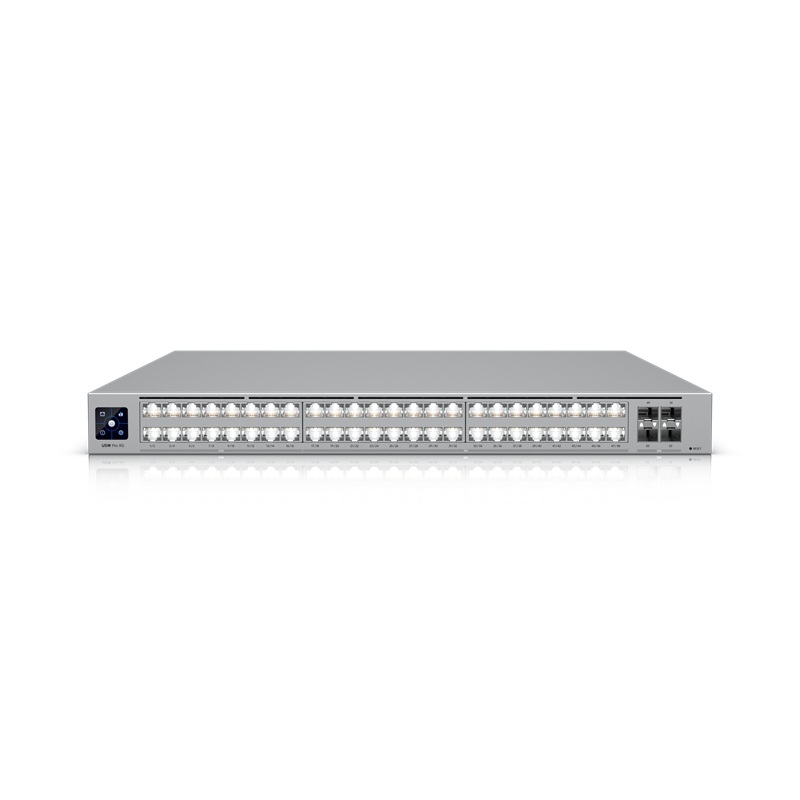

Ubiquiti UniFi Pro XG 48 Professional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports
Features
- Etherlighting™ - A Cable Management Dream - Identify native VLANs with a glance. Instantly differentiate ports by speed. Find any device in seconds.
- Ideal for 6 GHz WiFi Access Points - Featuring 2.5 / 5 / 10 GbE ports for enterprise performance.
- Power Redundancy - Keep your UniFi switches online during power failures with seamless backup and automatic failover.
| Details | |
|---|---|
| Manufacturer's Code | USW-Pro-XG-48 |
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Port Layout | 16x 2.5 GbE RJ45 (2.5G/1G/100M/10M), 32x 10 GbE RJ45 (10G/5G/2.5G/1G/100M/10M), 4x 25G SFP28 (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size | ARP Entries 128,000, IPv4 Routes 256,000 |
| Packet Buffer Size | 8 MB |
| Access Lists | IPv4 256, MAC 256 |
| Max. Power Consumption | 250W |
| Power Method | (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 300W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet, AR |
| Weight | Without mounting brackets: 7.5 kg (16.5 lb), With mounting brackets: 7.6 kg (16.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks, Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 14kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | SFP+: Yes, SFP28: Yes |
| LEDs | RPS: Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| UniFi Network Application Requirements | Version 9.0.114 and later |
| Details | |
|---|---|
| Power Supply | AU/NZ Power Cord included |
| Mounting Hardware | Rack Mount Kit included |
