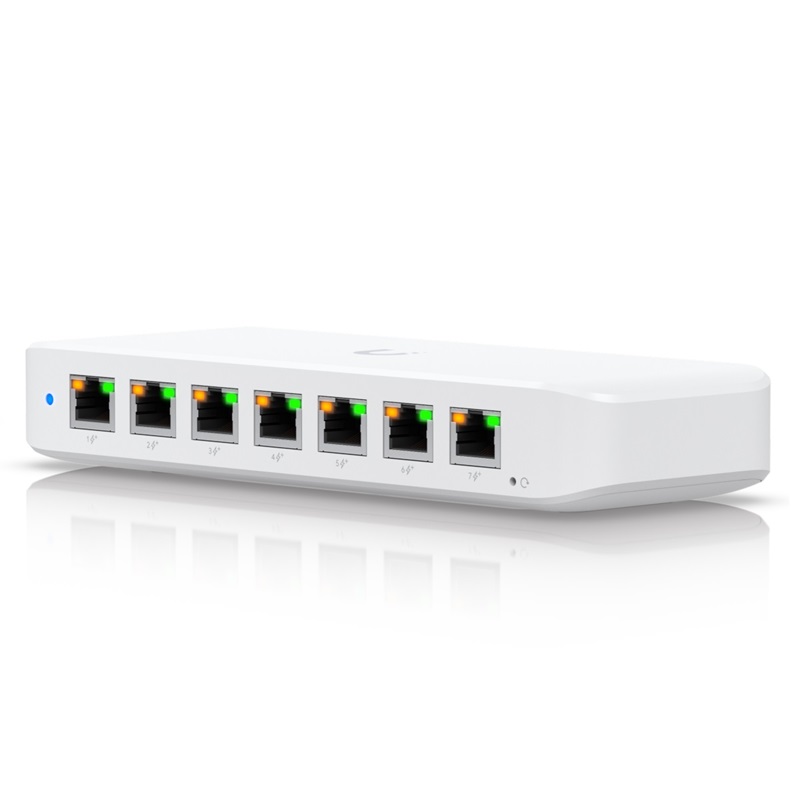

Ubiquiti UniFi Ultra Compact 8-port Layer 2 GbE PoE switch with versatile mounting options - No Power Supply

$217.00 +GST

2 In Stock

SKU: USW-ULTRA

Ubiquiti UniFi Ultra Compact 8-port, Layer 2 GbE PoE switch with versatile mounting options - No Power Supply

Warranty

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

Ubiquiti UniFi Ultra Compact 8-port, Layer 2 GbE PoE switch with versatile mounting options - No Power Supply

Features

Details
Manufacturer's Code	USW-Ultra
Management interface	Ethernet In-Band
Networking interface	(8) GbE RJ45 ports
PoE interface	(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput	8 Gbps
Switching capacity	16 Gbps
Power method	(1) 54V, 3.9A power adapter (Not included), (1) 54V, 1.1A power adapter (Not included), PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
Supported voltage range	44—57V DC
Max. power consumption	9W with PoE input (Excluding PoE output), 8W with AC adapter input (Excluding PoE output)
Total available PoE	PoE++ input: 42W, PoE+ input: 16W, 60W PoE adapter input: 42W, 60W AC adapter input: 52W, 210W AC adapter input: 202W* *At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)
Max. PoE+ wattage per port by PSE	30W
Button	Factory reset
Ambient operating temperature	PoE++ input: -30 to 60° C (-22 to 140° F), 60W AC adapter input: -20 to 45° C (-4 to 113° F), 210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient operating humidity	10 to 90% noncondensing
Layer 2 Switching features	Port isolation, Storm control, Port mirroring, Multicast / broadcast rate limiting, Flow control, Jumbo frames, Egress rate limit
UniFi Network	Version 8.0.28 and later
Dimensions	203 x 76 x 33 mm (8 x 3 x 1.3")
Weight	Device: 320 g (11.3 oz), Wall mount: 45 g (1.6 oz)
Enclosure material	Polycarbonate
Certifications	CE, FCC, IC
