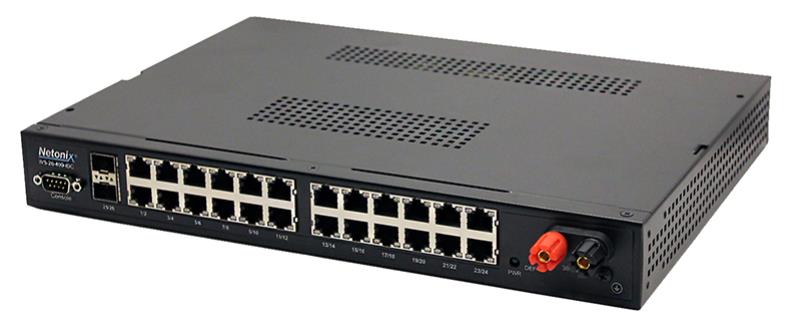

Netonix 26 Port 400W DC Powered Managed PoE Switch

WS-26-400-IDC
SKU: WS-26-400-IDC
Netonix WS-26-400-IDC WISP Switch with 24 1Gbps Ethernet PoE ports and 2 SFP Ports 400Watt DC powered 36-72VDC
Ethernet Speed
Integrated PoE
Warranty:
In stock
Description
Description
Specifications
Resources
Package Contents
The Netonix® WISP Switch™ model WS-26-400-IDC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.
Important: Check device POE type and pinout before enabling 24VH or 48VH Settings! i.e. 24VH Ports should only be used for devices like AF-5X, 48VH Ports should only be used by airFiber (AF24, AF5) and Mimosa (B5, B5c).
Features
  • Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes
  • The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH)
  • Monitor DC voltage and current into the switch from your batteries
  • Monitors the DC power supply temperature with auto and programmable thermal shutdown
  • Program the switch to shut down lower priority POE ports when batteries get low and to restore them when sufficient reserves return or when it detects charging has resumed from solar or wind
  • If power gets too low it can be configured to shut down all POE ports and hibernate your remote site until it detects solar or wind charging has resumed and sufficient reserves are generated
  • Power Supply has its own micro processor to communicate to the switch itself allowing full control over the power supply and all relative telemetry generated by sensors built into the power supply
Details
Manufacturer's CodeWS-26-400-IDC
Power Input32-72VDC (Isolated)
Max. Power Consumption400W
Operating Temperature-25 to 55°C
Passive PoE Configured Per Port via UI24V 0.75A pins 4,5(+) 7,8(-), 48V 0.75A pins 4,5(+) 7,8(-), 24VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-), 48VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-)
PoE Out Voltage Range48-50 VDC / 22-24 VDC
24V PoE Ports Pins 4,5 (+) Pins 7,8 (-)Ports 01-24
48V PoE Ports Pins 4,5 (+) Pins 7,8 (-)Ports 01-24
24VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-)Ports 01-02
48VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-)Ports 01-06
Ethernet Ports(24) 10/100/1000 Ethernet Ports
SFP Ports(2) SFP Ports
Dimensions438mm x 44mm x 229mm
Details
Mounting HardwareWall Mount (Optional DIN Rail and 19" Mounting Kits Sold Separately)
WarrantyStandard 12 Month RTB
