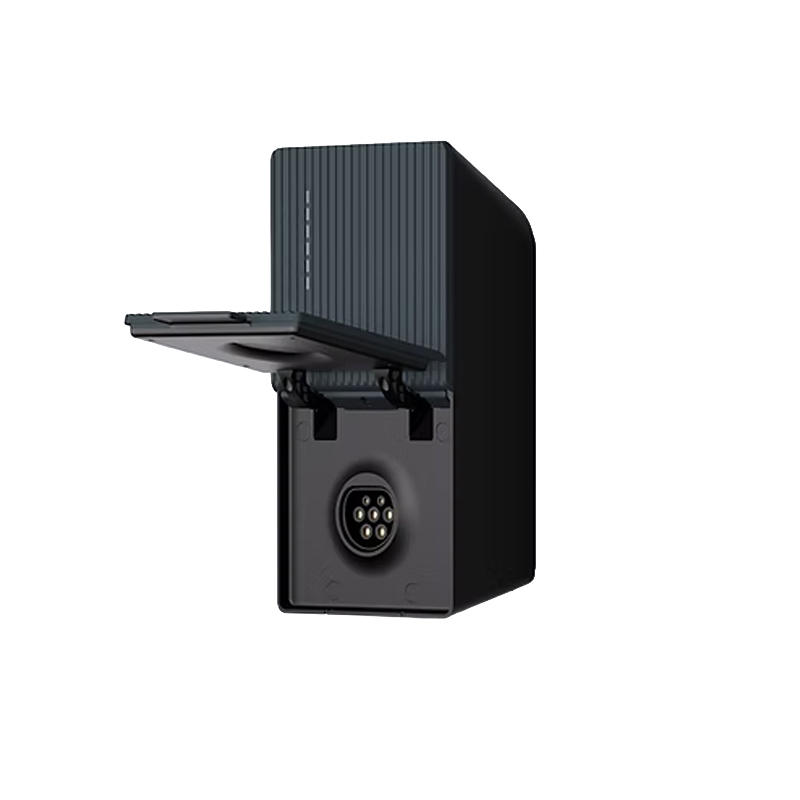

Teltonika Energy EVC2 EV Charger Three Phase, Wall mounted EV charger with Type 2 Socket (22KW) & GSM Module with included RMS
Rain or shine our charger will work every time. Made in EU with a rigorous quality control at every manufacturing step. 36-month standard warranty, extendable up to 60 months. IP 56 dust and water resistant. IK10 impact protection. Operating temperature ranges from -30 °C to +50 °C.
Cable entry is possible both from the back of the device – for a more elegant, seamless look on the wall – or from the bottom, ensuring an even more secure and weather-resistant fit. This flexibility allows for easier installation in different environments while maintaining a clean appearance and strong protection against external factors such as moisture, dust, and impact.
Teltonika Energy app includes 25 language support. Smart scheduling to maximize your comfort. Detailed statistics to see how much you saved each month. Finetune your experience to how you like it. Set it and forget it. Let the charger work for you, not the other way around.
Rain or shine our charger will work every time. Made in EU with a rigorous quality control at every manufacturing step. 36-month standard warranty, extendable up to 60 months. IP 56 dust and water resistant. IK10 impact protection. Operating temperature ranges from -30 °C to +50 °C.
Cable entry is possible both from the back of the device – for a more elegant, seamless look on the wall – or from the bottom, ensuring an even more secure and weather-resistant fit. This flexibility allows for easier installation in different environments while maintaining a clean appearance and strong protection against external factors such as moisture, dust, and impact.
Teltonika Energy app includes 25 language support. Smart scheduling to maximize your comfort. Detailed statistics to see how much you saved each month. Finetune your experience to how you like it. Set it and forget it. Let the charger work for you, not the other way around.
Features
- Intelligent charge faster and cheaper using phase balance and smart sensors
- Built in Wifi, Ethernet, Bluetooth, 4G LTE connectivity, NFC
- Weatherproof, 36 month warranty
- 24 month remote management system included
- Note: Cover not included
| Details | |
|---|---|
| Product code | Teltonika Energy EVC2002100S0 |
| Charger Type | AC EV Wall Charger |
| Charging Output | Up to 22 kW |
| Phases | Three phase |
| Rated Current | Up to 32 A |
| Input Voltage | 400 V AC ±10% |
| Rated Frequency | 50/60 Hz |
| Frontplate Cover | Not included |
| Connector Type | Type 2 socket (IEC 62196-2) |
| Cable Included | No – Socket only |
| Network Type | TN and TT |
| Load Balancing | Static, Dynamic, Multi-device, Solar modes |
| Energy Metering | Built-in energy meter, accuracy <1% |
| Connectivity – Ethernet | Yes (RJ45) |
| Connectivity – WiFi | 2.4 GHz 802.11 b/g/n |
| Connectivity – Bluetooth | Bluetooth Low Energy 5.0 |
| Connectivity – Cellular | Dual SIM / eSIM 4G LTE (CAT1) |
| Management Protocol | OCPP 1.6J |
| Remote Management Service (RMS) | Teltonika RMS included for 24 months |
| Local Control | Mobile App, NFC |
| Residual Current Protection | 6 mA DC (IEC 62955) |
| Electrical Protection | Overvoltage, overcurrent, ground fault protection |
| Ingress Protection | IP56 |
| Impact Protection | IK10 |
| Fire Rating | UL94 |
| Operating Temperature | -30 °C to +50 °C |
| Operating Humidity | Up to 95% RH non-condensing |
| Storage Temperature | -40 °C to +60 °C |
| Enclosure Material | Impact-resistant housing |
| LED Indicators | Status LEDs |
| Dimensions (W x H x D) | 190 × 401 × 125 mm |
| Installation Type | Wall mount or pole mount (optional accessories) |
| Certifications | CE, RCM, UKCA |
| Standards Compliance | IEC 61851-1, IEC 61851-21-2, IEC 62955 |
| Environmental Compliance | RoHS, REACH |
| Details | |
|---|---|
| Contains | TeltoCharge unit, Cable glands, mounting template, 2 x NFC tags |
| Frontplate Cover | Not included |
Wi-Fi 4 , 3G/4G/5G/LTE , Bluetooth , NFC
RJ45
2.4GHz
