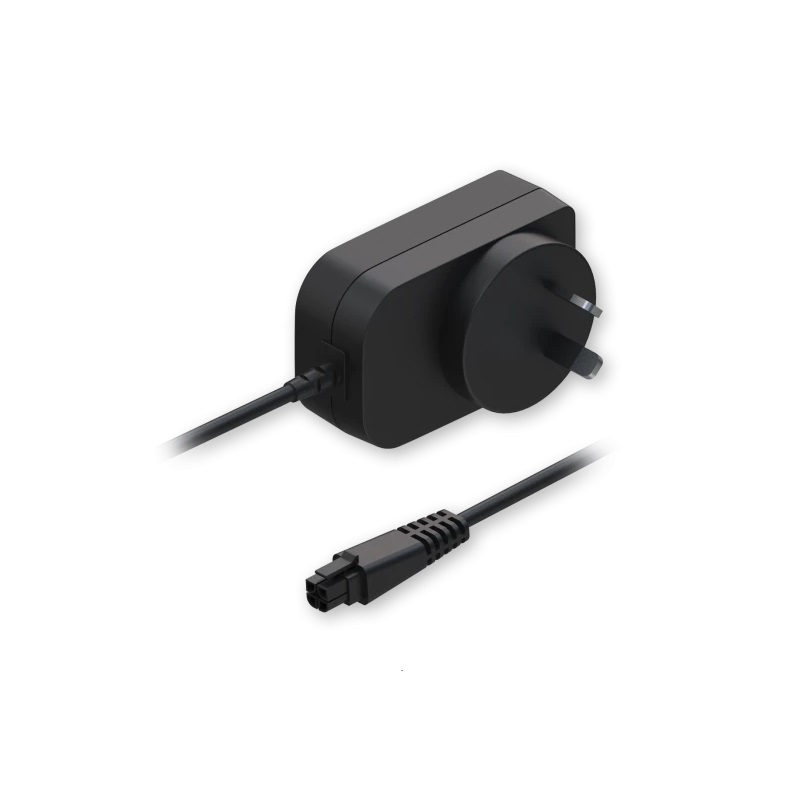

Teltonika PR3P2AU3 AU power supply 12VDC 24W for RUTX12 and RUTX14
Details | |
---|---|
Manufacturer's Product Code | PR3P2AU3 |
Input voltage | 100 – 240 VAC |
Input frequency | 50 / 60 Hz |
Input current | 0.8 A |
Input connector | AU (Type I) |
Output voltage | 12 VDC |
Output current | 2.0 A |
Output connector | 4-pin, 3 mm pitch |
Weight | 115 g |
Input voltage range | 90 – 264 VAC |
Input frequency range | 47 – 63 Hz |
Maximum input inrush current | 60 A |
Output voltage maximum deviation | 11.4 – 12.6 VDC |
Short circuit protection | Yes |
HIPOT (dielectric withstand test) | Primary to Secondary: 4000 VDC |
MTBF | 30000 h |
PSU efficiency standard | DoE Level VI |
Certification | Safety: AS/NZS 60950.1:2015, AS/NZS 60065:2012 Inc A1 |
EMC: | AS/NZS CISPR 22:2009+A1:2010, AS/NZS CISPR 13:2012, EN 55032:2012, EN 55024:2010, EN 55020:2007+A11, EN 61000-3-2:2014, EN 61000-3-3:2013 |
