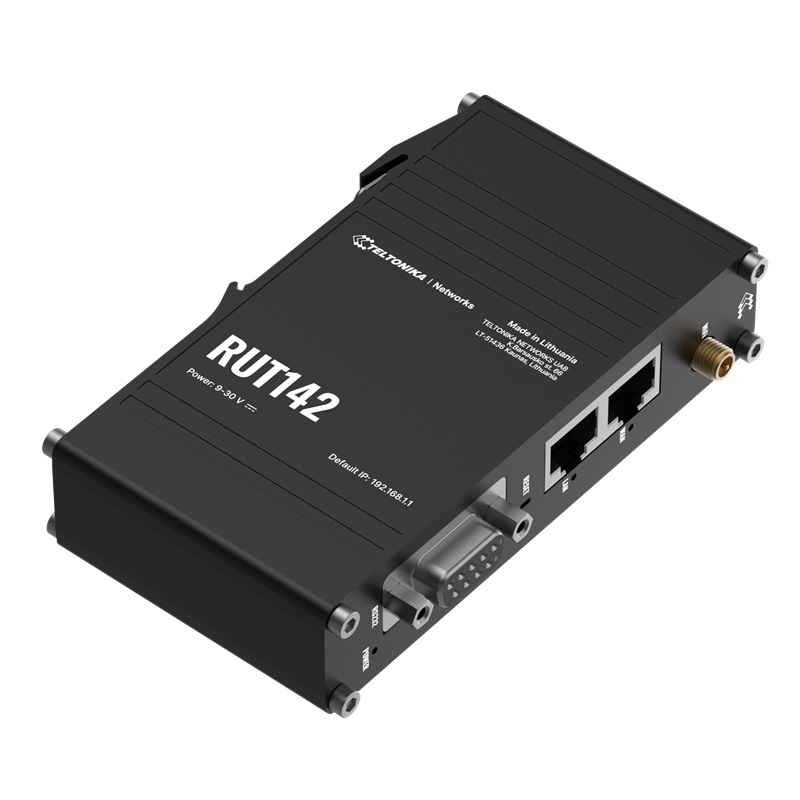

Teltonika RUT142 DIN Rail Mount Industrial Ethernet Wi-Fi Router. The RUT142 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with the RS232 serial interface, two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
Features
- 2 x 10/100 Mbps Ethernet ports, Wi-Fi 4
- RS232 for serial communication
- Integrated DIN rail bracket and a 3-pin power connector
- RMS Remote management, access & VPN services
| Details | |
|---|---|
| Product code | RUT1420PRT01 |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB serial NOR flash |
| WAN | 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Wireless mode | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Wi-Fi security | WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customization |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| VPN | OpenVPN, OpenVPN Encryption 27 Methods, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| OPC UA | Client, Server - TCP |
| Data To Server | HTTP(S), MQTT, Azure MQTT |
| Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. |
| Monitoring and Management | WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Power Connector | 3-pos pluggable terminal block, 3-pin power connector |
| Input voltage range | 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max (Power Supply not Included) |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | Idle: < 1 W / Max: < 2 W |
| Status LEDs | 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED |
| Antennas | 1 x RP-SMA for Wi-Fi |
| RS232 | 1 x DB9 socket |
| Reset | Reboot/User default reset/Factory reset button |
| Casing material | Aluminium housing |
| Dimensions (W x H x D) | 113.10 x 25 x 68.6 mm |
| Weight | 149.2 g |
| Mounting options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory | CE, UKCA, RCM, FCC, IC, CB, WEEE, RoHS, REACH |
| Details | |
|---|---|
| Included | 1 x Router, 1 x 3-pin power connector, QSG (Quick Start Guide) |
| Power Supply | Not Included |
Teltonika RMS
100Mbps
Wi-Fi 4
DB9 , RJ45 , RP-SMA , SMA
600-999MHz , 1700-2100MHz , 2.4GHz
PoE (non standard)
