Tycon 9-36VDC In, 48VDC 802.3af Out DC to DC Converter

0 Rating
$115.00 +GST
Login for your price
23 In Stock
SKU: TP-DCDC-1248GD
QuantityPrice
1 - 4$115.00
5 - 9$112.13
10 - 19$109.25
20+$103.50

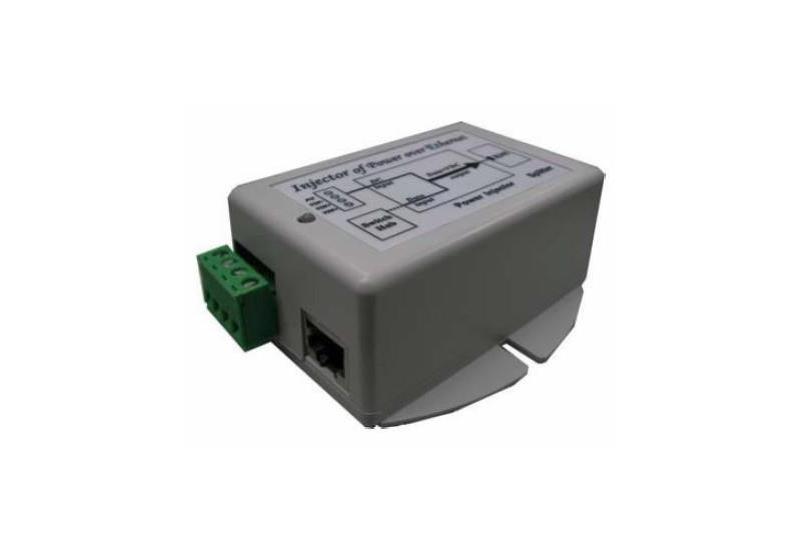

Tycon Power Systems 9-36VDC In, 48VDC 802.3af Out 17W DC to DC Converter (TP-DCDC-1248GD)
Warranty
Description
Specifications
Resources
Package Contents
The TP-DCDC-1248GD Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC-56VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload.
Details
Manufacturer's Product CodeTP-DCDC-1248GD
DC Input Voltage9VDC – 36VDC
DC Input ConnectorRemovable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage48V (802.3af)
Data in & Data/POE Output ConnectorRJ45 (Shielded)
Output Current (max)0.35A
Output Power (max)17W
Self Consumption Power1W
Dimensions (LxWxH)85 x 76 x 36mm
Details
WarrantyStandard 12 Month RTB
PoE (802.3af/at)
1Gbps
