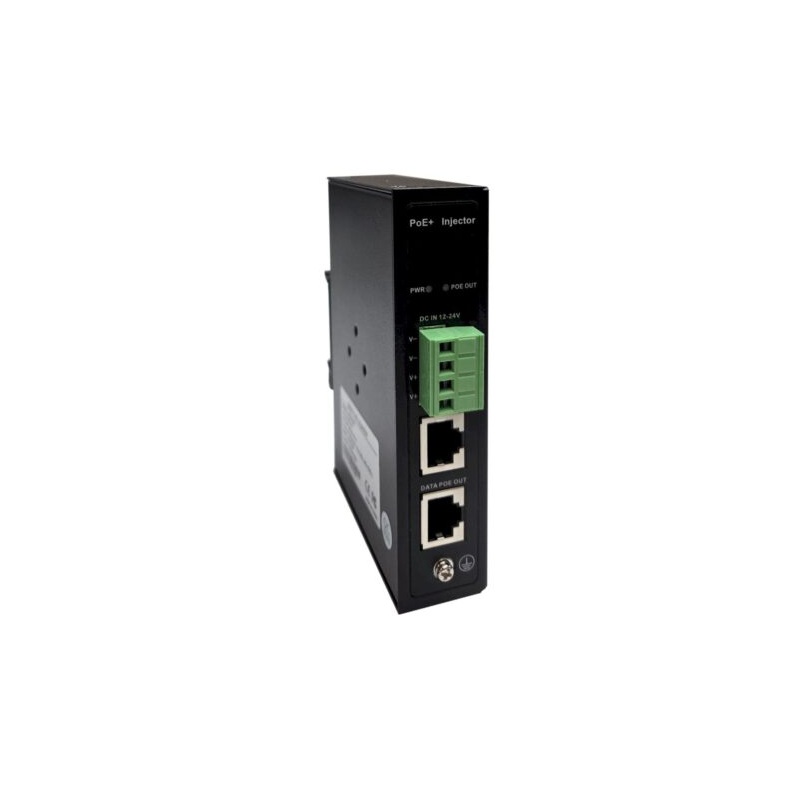

The Tycon Systems TP-DC-12BT60-10G is a DC-to-DC PoE++ inserter designed for reliable performance in battery-powered systems, accepting a 12-24VDC input. It supports data speeds from 10/100Mb to 10G, making it ideal for modern, high-speed networks. The durable metal enclosure comes with brackets for easy DIN rail or wall mounting.
Built-in protections safeguard against overloads, overheating, and Low Voltage Detect (LVD). With an operating temperature range of -20°C to +60°C, this inserter ensures dependable operation in challenging environments.
Applications
- Solar Battery Systems
- Vehicular and Marine Applications
- Wireless Equipment
- Security Systems
Built-in protections safeguard against overloads, overheating, and Low Voltage Detect (LVD). With an operating temperature range of -20°C to +60°C, this inserter ensures dependable operation in challenging environments.
Applications
- Solar Battery Systems
- Vehicular and Marine Applications
- Wireless Equipment
- Security Systems
Features
- 12-24VDC to 54VDC Efficient DCDC Converter
- 802.3bt 54V 60W Class 6 PoE++ Output
- 4 Pair Power Delivery
- 10/100/1000Mb/2.5G/5G/10G Compatible
- DIN Rail or Wall Mount (Brackets Included)
- Over Current, Over Temperature, LVD Protections
- Metal Housing, Removeable Wire Terminal Connector
- Wide Temperature Operation: -20C to +60C
| Details | |
|---|---|
| Manufacturer's Code | TP-DC-12BT60-10G |
| Input Voltage @ Current | 11-29VDC @ 7A |
| Input Connector | Removeable Wire Terminal (up to 12AWG) |
| Output Power Over Ethernet (PoE) | 54VDC 60W, 802.3af/at/bt Class 6, PoE++ |
| PoE Pinout | 1,2(V+) 3,6(V-) 4,5(V+) 7,8(V-) |
| Output Connectors | Shielded RJ45 for Data IN and PoE OUT |
| Ethernet Speed | 10/100/1000Mb/2.5G/5G/10G |
| Efficiency | 80% Min |
| LED Function | Power (Green) = Power is Stable, PoE Out (Green) = PoE Out is delivering PoE Power to a device |
| Protections | Over Current, Overload, Over Voltage, Anti-Interference, Low Voltage Detect (LVD) |
| International Standards | FCC Class B EN55032 Class B, EN 61000-3-2, EN 62368-1 |
| Operating Temperature | -20 to +60°C ( -4F to +140°F) |
| Operating Humidity (RH) | 5% - 80% non-condensing |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Dimensions (L x W x H) | 119 x 85.5 x 28mm ( 4.7 x 3.4 x 1.1” ) |
| Weight | 380g (13.4oz) |
| Details | |
|---|---|
| Included | (1) TP-DC-12BT60-10G |
| Mounting Hardware | DIN Rail or Wall Mount (Brackets Included) |
RJ45
PoE (802.3af/at) , POE (802.3bt)
