Description
Specifications
Resources
Package Contents

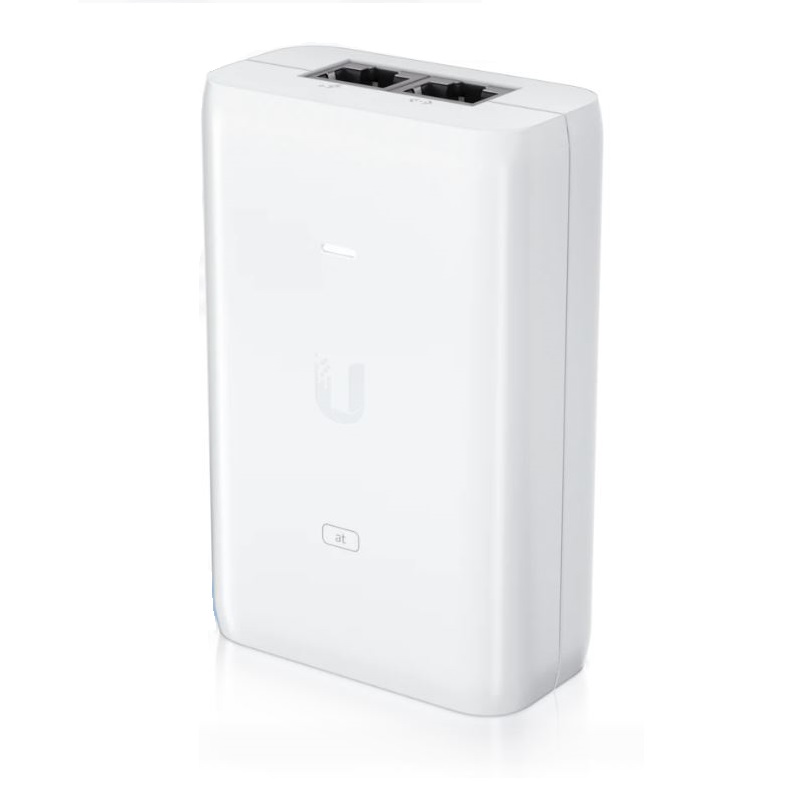

Ubiquiti 802.3at Gigabit PoE Injector 48VDC 30W. The U-PoE+ is a PoE+ injector designed to power 802.3at compatible devices. Capable of delivering 30W of PoE+ power, the U-PoE+ can be used to power any U6 Access Point (U6-LR, U6-Lite, U6-Pro), while also protecting against electrical surges.
Features
- Provides up to 30W of PoE+ (802.3at) power
- Compatible with the next generation of U6 Access points
- Surge protection and Clamping protection
- AC cable with earth ground
| Details | |
|---|---|
| Product Code | U-PoE+ |
| Dimensions | 93 x 62 x 35 mm |
| Weight | 156 g |
| Output Voltage | 48VDC @ 0.65A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.75A@90VAC |
| Inrush Current | <100A Peak @230VAC, 26℃ |
| Efficiency | 87% |
| Output Ripple | 1% Max. |
| Switching Frequency | 70 kHz Max. |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 90% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
| Details | |
|---|---|
| Power Cord | 3 Pin Clover Lead |
1Gbps
RJ45
PoE (non standard)
