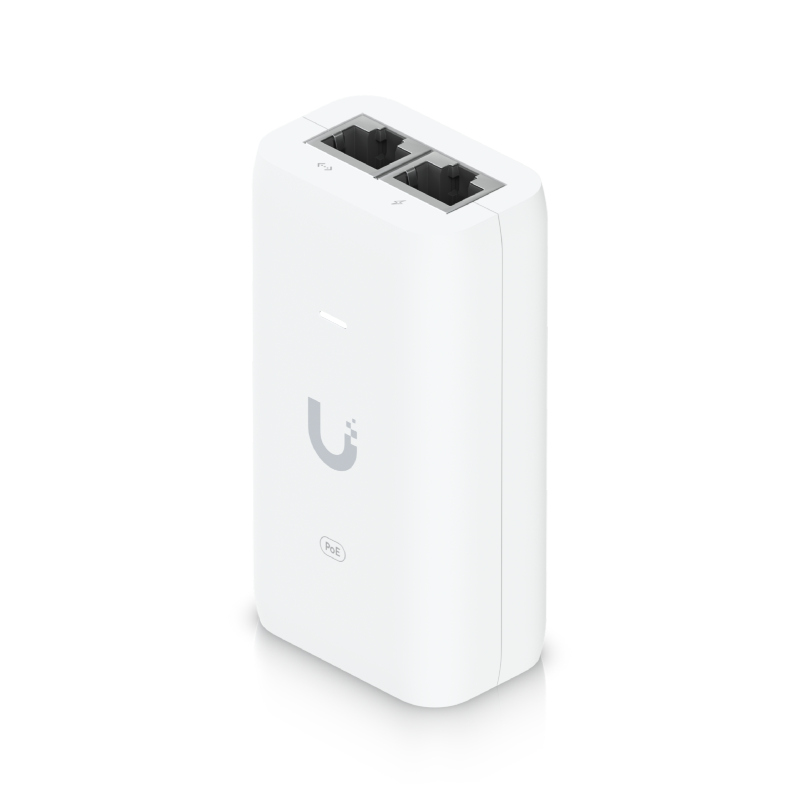

The Ubiquiti UniFi U-PoE PoE Injector is an adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Features
- Delivers up to 15W of PoE
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE output
- LED indicator for status monitoring
| Details | |
|---|---|
| Product Code | U-PoE |
| Dimensions | 86 x 46 x 33 mm |
| Weight | 100 g |
| Output Voltage | 48V DC @ 0.32A |
| LAN Activity Indicator | No |
| Gigabit LAN port | Yes |
| Remote Reset Capability | No |
| Reset button | No |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| Input Current | 500mA max. |
| Inrush Current | <100A peak at 25°C |
| Efficiency | 84.25+% |
| Output Ripple | 200mV p-p |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair Powering | No |
| AC Connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Maximum Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Ambient Operating Temperature | 0 to 40° C |
| Storage Temperature | -30 to 70°C |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | Yes |
| Details | |
|---|---|
| Power Cord | 3 Pin Clover Lead |
1Gbps
PoE (non standard)
