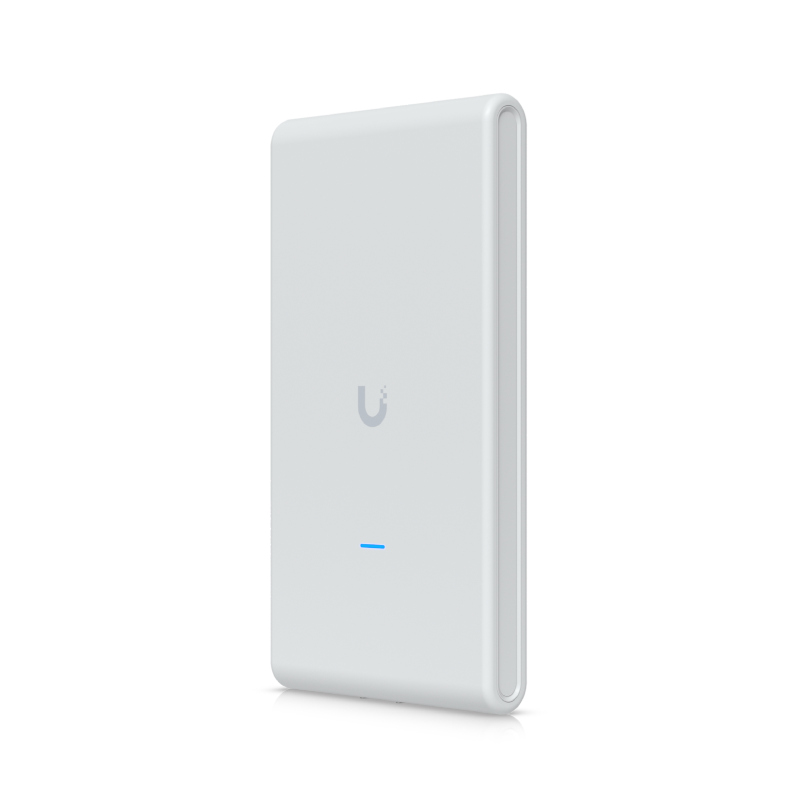

Ubiquiti UniFi U6 Mesh Pro is an Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
Features
- WiFi 6
- 4 spatial streams
- 185 m² coverage with the integrated omnidirectional super antenna
- 350+ connected devices
- Powered using PoE
- GbE uplink with (1) GbE passthrough port
- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
| Details | |
|---|---|
| Manufacturer's Code | U6-Mesh-Pro |
| Weight | 819 g |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | Aluminum alloy, steel |
| Pole Mount Diameter | 1~2.5" on pipe outer diameter |
| Weatherproofing | IPX6 |
| Networking Interface | (2) GbE RJ45 ports |
| Power Method | PoE |
| Power Supply | UniFi PoE switch, 48V, 0.5A PoE adapter (Included) |
| Supported Voltage Range | 42.5—57V DC |
| Maximum Power Consumption | 9W |
| Maximum TX Power | 2.4 GHz @ 22 dBm, 5 GHz @ 27 dBm |
| MIMO | 2.4 GHz/5 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain | 2.4 GHz, 5 GHz @ 8 dBi |
| Mounting | Wall, pole (Included) |
| Ambient Operating Temperature | -30 to 60° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| WiFi Standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Details | |
|---|---|
| Power Supply | 48V, 0.32A PoE adapter |
| Mounting | Wall, desktop, pole mount Included |
UniFi
1Gbps
Wi-Fi 6 , Bluetooth
RJ45
2.4GHz , 5GHz
PoE (802.3af/at) , POE (802.3bt)
