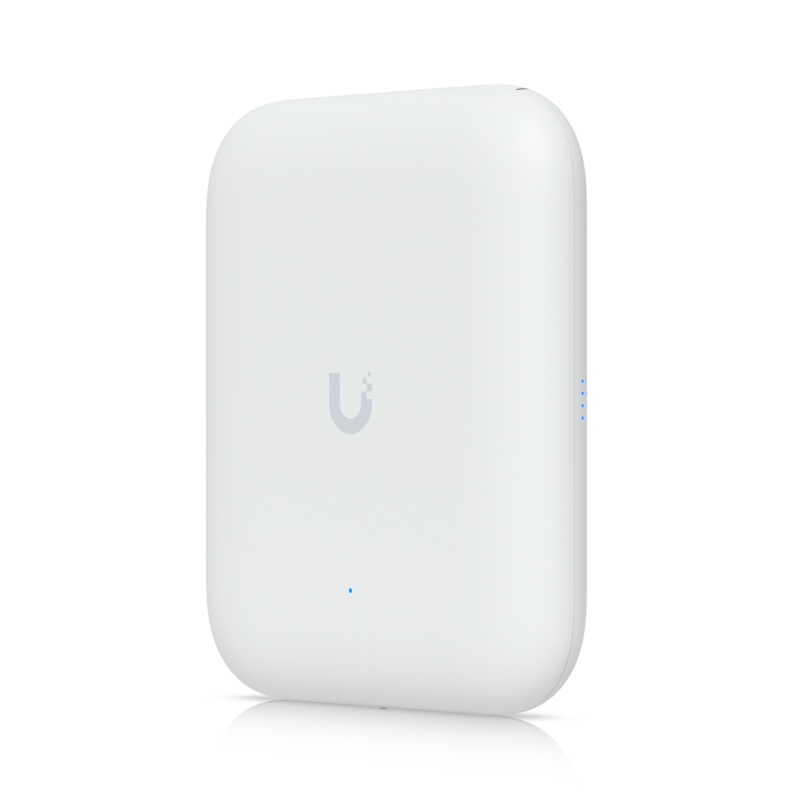

Ubiquiti UniFi U7 Outdoor WiFi 7 AP

$434.00 +GST

50+ In Stock

SKU: U7-Outdoor

Quantity	Price
1 - 4	$434.00
5 - 9	$423.15
10 - 19	$412.30
20+	$390.60

Ubiquiti UniFi U7 Outdoor WiFi 7 AP with Integrated Directional Super Antenna

Warranty

Back to: Outdoor Access Points

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

Ubiquiti UniFi U7 Outdoor WiFi 7 AP is an all-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.

PoE NOT included

Features

WiFi 7
4 spatial streams
465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
Software-switchable from internal directional to included external omni antennas
250+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile wall and pole mounting
Weatherproof (outdoor exposed)

Details
Manufacturer's Code	U7-Outdoor
Dimensions	170 x 208 x 54.5 mm
Weight	1.2 kg
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mount Material	Polycarbonate, SGCC steel
Pole Mount Diameter	25–60 mm on pipe outer diameter
Wind Survivability	74.6 N at 200 km/h
Weatherproofing	IPX6
Networking Interface	(1) 1/2.5 GbE RJ45 port
Management Interface	Ethernet
Power Method	PoE+
Power Supply	UniFi PoE Switch
Supported Voltage Range	42.5—57V DC
Maximum TX Power	2.4 GHz @ 23 dBM, 5 GHz @ 26 dBm
Antenna Gain	2.4 GHz @ Directional internal: 8 dBi/External omni: 3 dBi, 5 GHz @ Directional internal: 12.5 dBi/External omni: 4 dBi
Antenna Beamwidth	2.4 GHz @ 90°, 5Ghz @ 45°
Antennas	(1) Directional internal antenna, (2) External omni antennas, (2) RP-SMA connectors for external antenna
Mounting	Wall, ceiling, pole (Included)
Ambient Operating Temperature	-30 to 60° C
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
