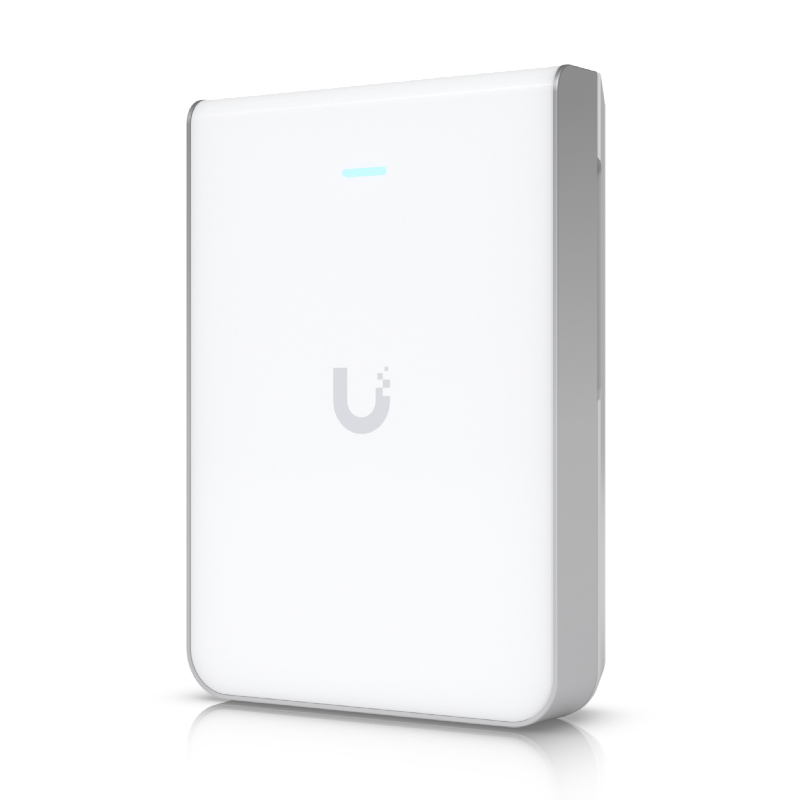

Ubiquiti UniFi U7 Pro Wall is a wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
PoE NOT included
PoE NOT included
Features
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink

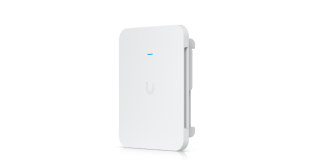

- Versatile deployment with optional Flush Mount and Table Stand accessories (sold separately)
| Details | |
|---|---|
| Manufacturer's Code | U7-Pro-Wall |
| Dimensions | 150 x 103 x 36 mm |
| Weight | 580 g |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Management Interface | Ethernet |
| Power Method | PoE+ |
| Power Supply | UniFi PoE switch |
| Supported Voltage Range | 44—57V DC |
| Maximum Power Consumption | 22W |
| Maximum TX Power | 2.4Ghz @ 22 dBm, 5Ghz @ 26 dBm, 6Ghz @ 23 dBm |
| Antenna Gain | 2.4Ghz @ 4 dBi, 5Ghz @ 5 dBi, 6Ghz @ 6 dBi |
| Mounting | Wall (Included), Table stand, flush mount (Optional) |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Details | |
|---|---|
| Mounting | Wall mount included |
| Power Supply | No, sold separately |
| Warranty | Standard 12 Month RTB |
UniFi
1Gbps
Wi-Fi 7
RJ45
2.4GHz , 5GHz , 6-38GHz
PoE (802.3af/at)
