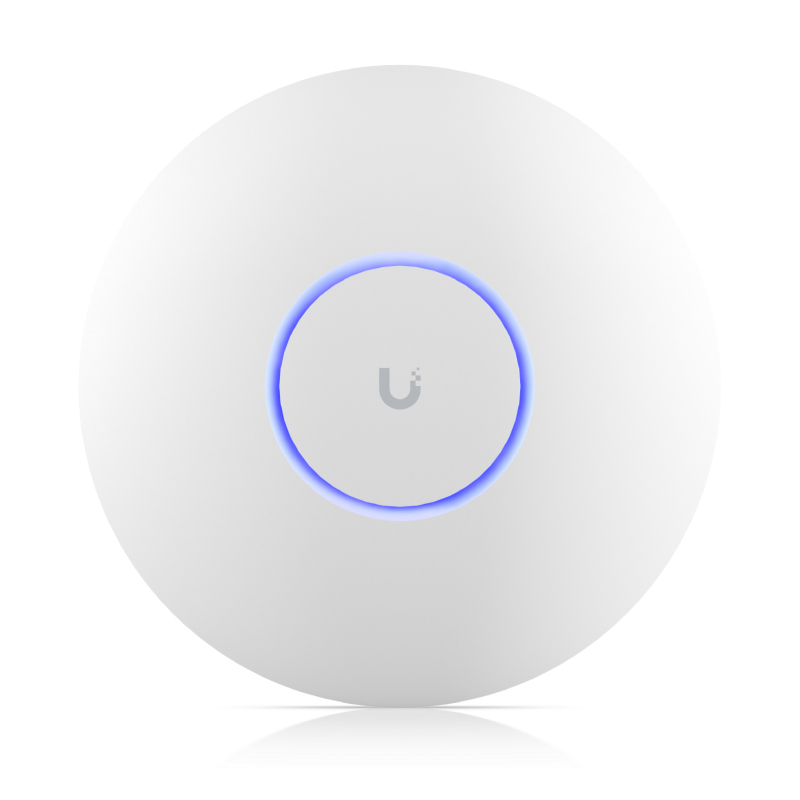

Ubiquiti UniFi U7 Pro Indoor Tri-Band WiFi 7 Access Point

$402.00 +GST

50+ In Stock

SKU: U7-Pro

Quantity	Price
1 - 4	$402.00
5 - 9	$391.95
10 - 19	$381.90
20+	$361.80

Data Sheet

Ubiquiti UniFi U7-Pro Indoor Tri-Band 2.4GHz/5GHz/6GHz WiFi 7 / 802.11be Access Point

Warranty

Back to: Indoor Access Points

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description
Reviews

Description

Specifications

Resources

Package Contents

Ubiquiti UniFi U7 Pro is a ceiling-mounted Wi-Fi 7 / 802.11be Access Point with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

PoE NOT included

Features

WiFi7 / 802.11be with 6 GHz support
6 spatial streams
Optimized for low-latency roaming
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Multi-Link Operation (MLO) (capability is coming soon)

Details
Manufacturer's Code	U7-Pro
WiFi standards	802.11a/b/g/n/ac/ax/be
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Dimensions	Ø206 x 46 mm
Weight	680 g
Enclosure Material	Polycarbonate, metal
Mount Material	Stainless steel (SUS304), galvanized steel (SGCC)
Networking Interface	(1) 1/2.5 GbE RJ45 port
Management Interface	Ethernet
Power Method	PoE+
Power Supply	UniFi PoE switch
Supported Voltage Range	44—57V DC
Max Power Consumption	21W
Max TX Power	2.4 GHz @ 22 dBm, 5 GHz @ 26 dBm, 6 GHz @ 23 dBm
MIMO	2.4 GHz, 5 GHz, 6 GHz: 2 x 2
Throughput Rate	2.4 GHz @ 688 Mbps, 5 GHz @ 2882 Mbps, 6 GHz @ 5765 Mbps
Antenna gain	2.4 GHz @ 4 dBi, 5 GHz @ 6 dBi, 6 GHz @ 5.8 dBi
Mounting	Wall/ceiling (Included)
UniFi Network	Version 8.0.26 and later
UniFi OS Version	3.2 and later
Ambient Operating Temperature	-30 to 60° C
Ambient Operating Humidity	5 to 95% noncondensing
