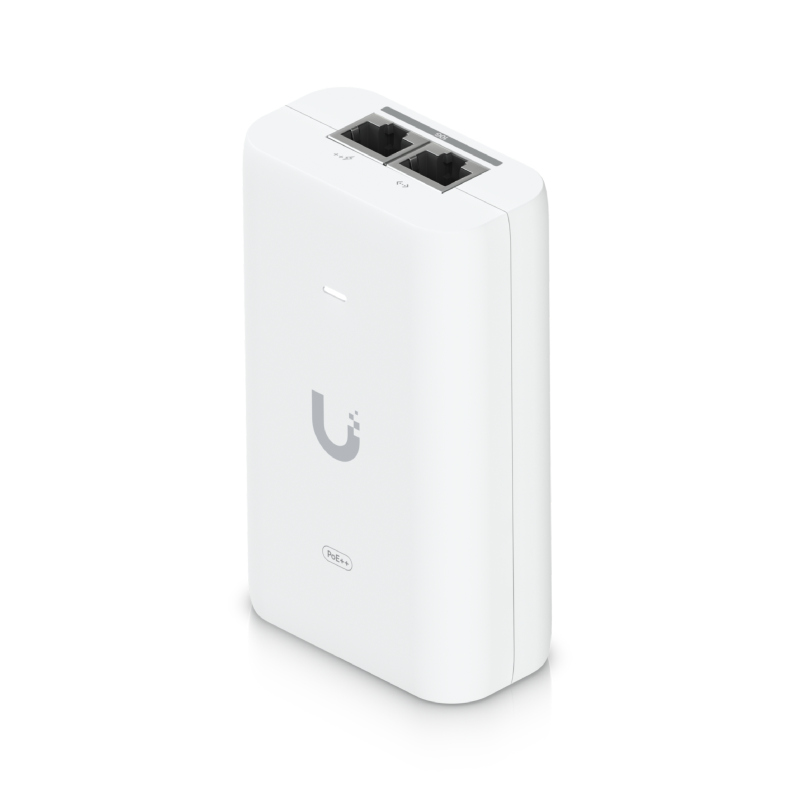

The UACC-PoE++-10G is an adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Features
- Delivers up to 60W of PoE++
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE++ output
- LED indicator for status monitoring
- Compatibility: E7, E7-Campus, E7-Audience
| Details | |
|---|---|
| Product Code | UACC-PoE++-10G |
| Dimensions | 106 x 63 x 34 mm |
| Weight | 210 g |
| Output Voltage | 54V DC @ 1.12A |
| LAN Activity Indicator | No |
| Gigabit LAN port | Yes, up to 10 GbE |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| Input Current | 1.5A max. |
| Inrush Current | <150A peak @ 230V AC |
| Efficiency | >88% |
| Output Ripple | 1% max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 2% |
| Load Regulation | ≤ 5% |
| 2-pair Powering | No |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Data In / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Maximum Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Maximum PoE+ Wattage per Port by PSE | 60W |
| Ambient Operating Temperature | 0 to 40° C |
| Storage Temperature | -30 to 70°C |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| NDAA Compliant | Yes |
| Details | |
|---|---|
| Power Cord | 3 Pin Clover Lead |
1Gbps
RJ45
POE (802.3bt)
