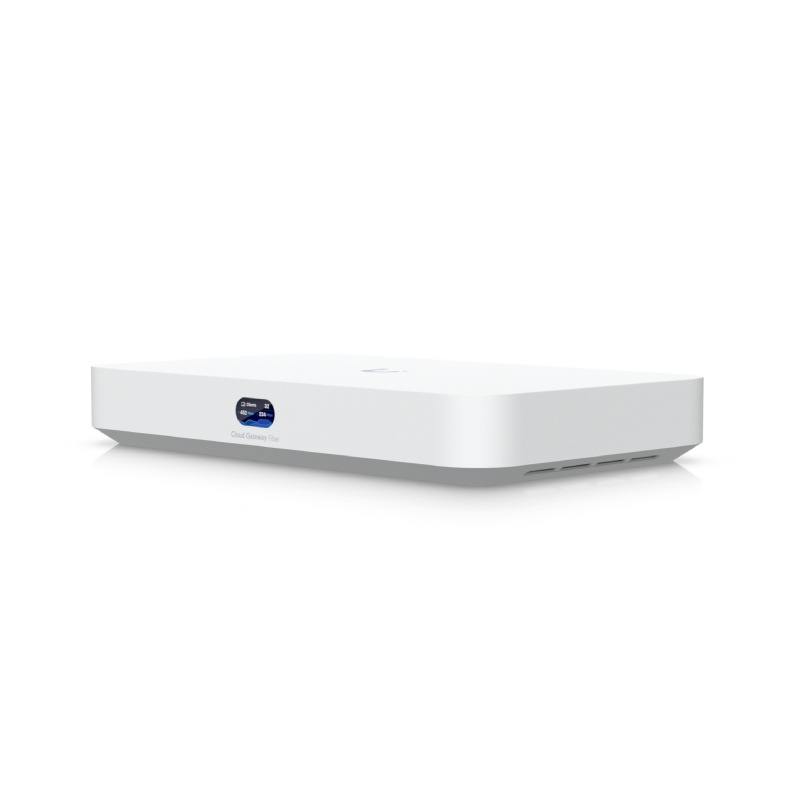

The Ubiquiti UniFi UCG-Fiber is a desktop 10G Cloud Gateway with integrated PoE switch, selectable NVR storage, and full UniFi application support.
Features
- Runs Full UniFi Application Suite for full-stack network management
- Manages 50+ UniFi Network devices and 50+ clients
- 5 Gbps routing with IDS/IPS
- Multi-WAN load balancing
- 0.96" LCM status display
| Details | |
|---|---|
| Manufacturer's Code | UCG-Fiber |
| Dimensions | 212.8 x 127.6 x 30 mm |
| Managed UniFi Devices | 50+ |
| Managed Cameras | (15) HD, (8) 2K, (5) 4K |
| Default WAN Ports | (1) 10G SFP+, (1) 10 GbE RJ45 |
| LAN Ports | (1) 10G SFP+, (4) 2.5 GbE RJ45 |
| IDS/IPS Throughput | 5 Gbps |
| NVR Storage | Selectable NVMe SSD up to 2 TB |
| PoE Budget | 30W |
| Maximum PoE Wattage per Port by PSE | PoE+ @ 30W |
| Voltage Range PoE Mode | 50-57V |
| Maximum Power Consumption | 29.4W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (adapter included) |
| Supported Voltage Range | 100-240V AC |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 3 GB |
| Weight | Without SSD: 675 g, With SSD: 734 g |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | 54V DC/1.1A (adapter included) |
| Warranty | Standard 12 Month RTB |
UniFi
1Gbps
RJ45 , SFP+
