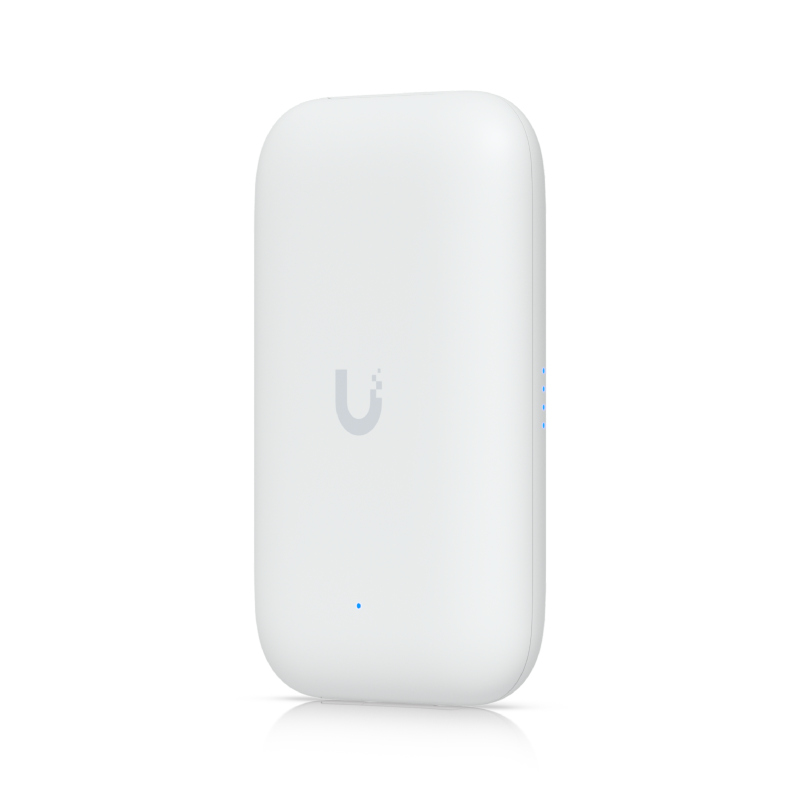

Ubiquiti UK-Ultra UniFi Swiss Army Knife Ultra Outdoor-Rated Wi-Fi 5 Access Point. Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.
Features
- WiFi 5: 4 spatial streams
- 115 m² (1,250 ft²) coverage with internal antenna
- 200+ connected devices
- Powered using PoE
- GbE uplink
- Versatile wall, ceiling, and pole mounting
- (2) RP-SMA connectors for optional external antennas* (Omnidirectional and directional antenna accessories coming soon)
- Weatherproof (outdoor exposed)
Details | |
---|---|
Manufacturer's Code | UK-Ultra |
Interfaces | (1) GbE RJ45 Port |
Frequency Range | 2.4GHz; 5GHz |
Output Power | 2.4GHz/5GHz: 20dBm |
Antenna | (1) Internal antenna, (2) RP-SMA connectors for optional external antennas |
Internal Antenna Gain | 4.7 dBi @ 2.4Ghz, 6 dBi @ 5Ghz |
Wireless standards | 802.11 a/b/g/n/ac |
Max. TX power | 2.4 GHz & 5 GHz: 20 dBm |
MIMO | 2.4 GHz & 5 GHz: 2 x 2 |
Throughput rates | 2.4 GHz: 300 Mbps, 5 GHz: 866.7 Mbps |
Antenna gain | 2.4 GHz: 4.7 dBi, 5 GHz: 6 dBi |
Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
BSSID | 8 per radio |
VLAN | 802.1Q |
Advanced QoS | Per-user rate limiting |
Guest traffic isolation | Supported |
Concurrent clients | 200+ |
Weatherproofing | IPX6 |
Power Method | PoE |
Supported Voltage Range | 44-57V DC |
Max Power consumption | 8W |
Pole Mount Diameter | 1~2" on pipe outer diameter |
Operating Temperature | -40 to 60° C |
Operating Humidity | 5 to 95% noncondensing |
Dimensions | 137 x 84 x 34 mm |
Weight | 173 g |
Certifications | CE, FCC, IC |
Details | |
---|---|
Power Supply | Not Included |
Mounting | Pole/Wall/Fast Mounting Included |
External Antenna | Not Included |
1Gbps
Wi-Fi 5
RJ45 , RP-SMA
2.4GHz , 5GHz
PoE (non standard) , PoE (802.3af/at)
