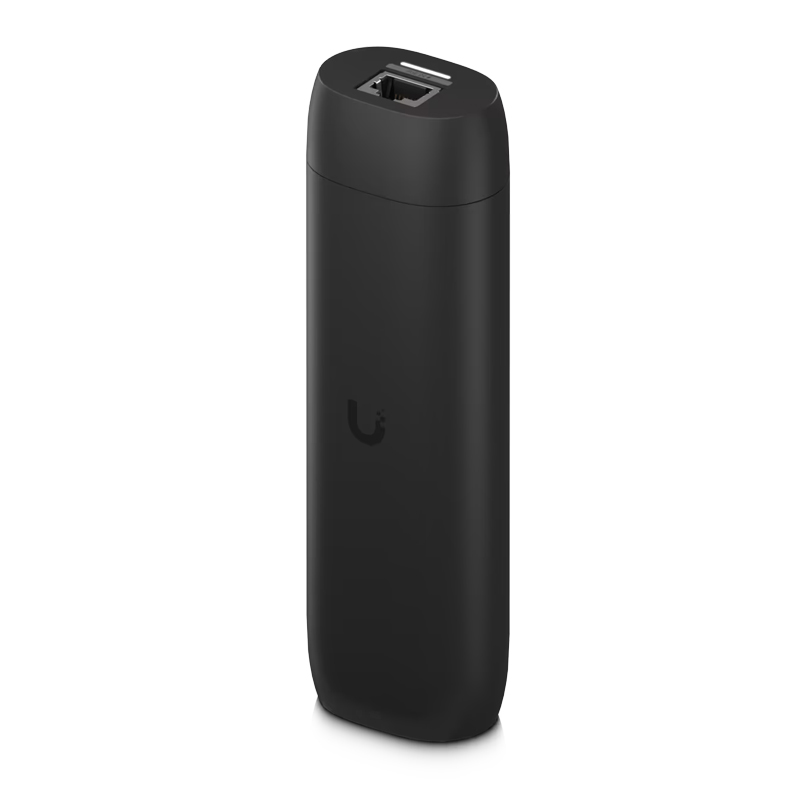

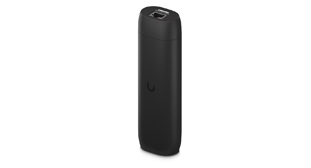

The Ubiquiti UniFi Protect ViewPort allows you to view your UniFi Protect camera feeds on a 4K HDMI display. It uses Power over Ethernet and connects to the local network hosting your cameras and connects via HDMI to a display. The UniFi Protect ViewPort offers 4K video output at 30 frames per second. Protect systems can be viewed in custom high-density camera matrix configurations.
Features
- View Unifi Protect cameras on an HDMI display
- Display up to 16 IP cameras simultaneously
- Easy setup with UniFi Protect System
- Powered by Power over Ethernet up to 1 Gbps
- HDMI video output up to 4K @ 30 fps
| Details | |
|---|---|
| Manufacturer's Code | UP-VIEWPORT |
| PoE | 802.3af PoE In |
| Networking Interface | 10/100/1000 Mbps RJ45 Ethernet Port |
| HDMI Out | Yes, 1 HDMI Port |
| Max. Power Consumption | 9.5W |
| Dimensions | 157 x 52 x 37 mm |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Operating Temperature | 0 to 40° C |
| Operating Humidity | 20 to 80% Noncondensing |
| Details | |
|---|---|
| Power Supply | Sold Separately |
| Mounting | Wall bracket and Mounting Kit |
| Cabling | HDMI Cable |
Bluetooth
RJ45
PoE (non standard)
