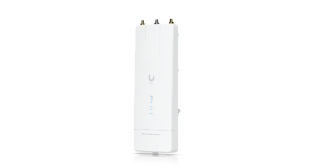

Ubiquiti UISP Wave MLO5 High-Performance Dual 5 GHz WiFi 7-Based PTP Radio

$1,075.00 +GST

28 In Stock

SKU: Wave-MLO5

Quantity	Price
1 - 4	$1 075.00
5 - 9	$1 048.13
10 - 19	$1 021.25
20+	$967.50

Ubiquiti UISP Wave MLO5 High-Performance Dual 5 GHz WiFi 7-Based Point to Point Radio

Warranty

Back to: Wireless Systems

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description
Reviews

Description

Specifications

Resources

Package Contents

Ubiquiti UISP Wave-MLO5 is a high-performance dual 5 GHz WiFi 7-based Point to Point radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.

Features

IPX6 Weatherproofing
100 km Maximum Range (Throughput and range values may vary depending on the environmental conditions)
High-performance dual 5 GHz WiFi 7-based radios
Multi-Link Operation (MLO) technology

Details
Manufacturer's Code	Wave-MLO5
Dimensions	249.3 x 82 x 47.6 mm
Weight	575 g
Enclosure Material	Aluminum alloy, UV-resistant polycarbonate
Mount Material	Strap: stainless metal, Universal bracket: UV-resistant polycarbonate
Pole Mount Diameter	25.4 to 50.8 mm (1 to 2") on pipe outer diameter
Weatherproofing	IPX6
Processor	Quad-core IPQ5322 at 1.5 GHz
Memory	DDR4 1 GB
Networking Interface	(1) 10 GbE RJ45 port, (1) 10G SFP+ port
RF Connectors	(2) RP-SMA (Waterproof),(1) GPS (Waterproof)
Maximum Power Consumption	20W
Power Method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-), Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power Supply	54V DC, 0.56A, 10 GbE PoE adapter (Included)
Supported Voltage Range	44–54V DC, 22–27V DC
Maximum TX power	5 GHz @ 24 dBm
MIMO	5 GHz @ (2) 2 x 2
GPS	Yes
Ambient Operating Temperature	-40 to 60° C
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
NDAA Compliant	Yes
Operating Mode	PtP
Total Throughput	5+ Gbps
Maximum Theoretical Range	100 km
Encryption	WPA3-PSK (AES)
RF Operating Frequency	5180 – 5320, 5500 – 5700, 5745 – 5825 MHz
Channel Bandwidth	Radio 1: 20, 40, 80, 160 MHz, Radio 2: 20, 40, 80, 160, 240 MHz
