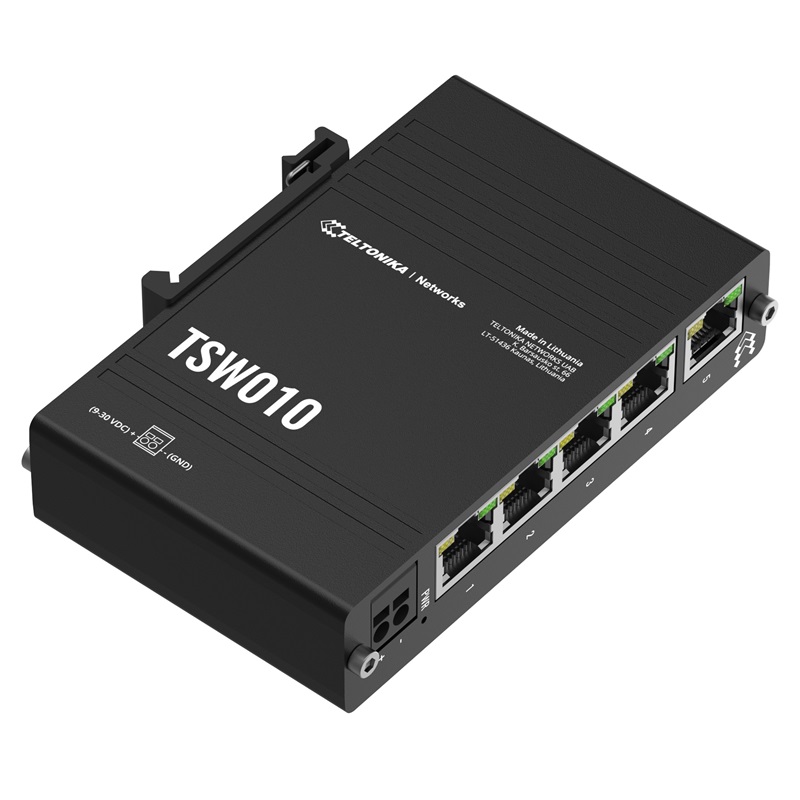

Teltonika TSW010 Din Rail Switch 5 x 10/100 Ethernet ports. TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
Features
- Plug and Play, no configuration needed
- Integrated DIN rail bracket and surface mounting options
- Anodized aluminium housing and panels
Details | |
---|---|
Product code | TSW010 |
Ports | 5 x RJ45 ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover |
IEEE 802.3 series standards | 802.3i, 802.3u, 802.3x, 802.3az |
Bandwidth (Non-blocking) | 1 Gbps |
MAC address table size | 2K entries |
Jumbo frame support | 2048 bytes |
Power Connector | 2-pin industrial DC power socket |
Input voltage range | 9 – 30 VDC (Power Supply Not Included) |
Input PoE (passive) | ETH1 port Mode B, 9 - 30 VDC in |
Power consumption | Idle: 0.3 W / Max: 0.9 W |
Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
Casing material | Aluminum housing |
Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
Weight | 146.5 g |
Mounting options | DIN rail or wall mounting (additional kit needed), flat surface placement |
Operating temperature | -40 °C to 75 °C |
Operating humidity | 10% to 90% non-condensing |
Ingress Protection Rating | IP30 |
Regulatory | CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM |
Safety Standards | EN IEC 62368-1:2020+A11:2020 |
Details | |
---|---|
Included | 1 x TSW010, QSG (Quick Start Guide) |
Power Supply | Not Included |
100Mbps , 1Gbps
RJ45
