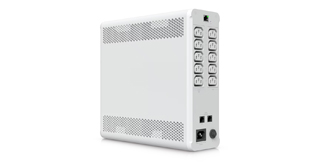

Ubiquiti UniFi UPS Tower Managed 1kVA Uninterruptible Power Supply With 10 Outlets and Hot Swappable Battery

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

Ubiquiti UniFi UPS Tower (EU Model), UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.

Note. For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.

Features

Sleek UPS Tower offers reduced capacity in a compact form factor
Seamlessly Integrate into the UniFi Network application for simple adoption and monitoring
Built-in NUT server capability extending safe shutdown support to third-party servers as well
(5) Battery backup/surge protection outlets: C13
(5) Additional surge protection outlets: C13
(2) GbE RJ45 surge protector, in/out

Details
Manufacturer's Code	UPS-Tower-EU
Dimensions	288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
Weight	7.85 kg (17.3 lb)
Enclosure Material	Polycarbonate and acrylonitrile butadiene styrene blend
Form Factor	Desktop
Weatherproofing	IP20
Management	Ethernet
Networking Interface	(1) 100/10 MbE port for network connection, (2) GbE ports for surge in/out
Power	(1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord, (5) Battery backup/surge protection: C13, (5) Surge protection: C13
Capacity	1,000VA/600W
Type	Line interactive
Input Voltage Range	170—280V AC
Power Method	(1) TN system, 220—240V AC, 6A Max., 50/60 Hz
Nominal Input Voltage	230V AC
Output Voltage	220—240V AC
Nominal Output Voltage	230V AC
Frequency Range	AC mode: 50/60 Hz ±5 Hz (Auto sensing), Battery mode: 50 Hz ±1 Hz
AC Voltage Regulation	±10% (Battery mode)
Transfer Time	6 ms typical; 10 ms max. (Battery mode)
Wave Form	Simulated sine wave (Battery mode)
Battery Type	(1) Lead Acid 12V, 9Ah
Runtime	Full load: 2 min, Half load: 7 min
Battery Charging Time	6-8 hours recovery to 90% capacity
Overload at On-Line Mode	110% 5 min go to fault, 120% go to fault immediately
Overload at Battery Mode	110% shutdown in 5 sec, 120% shutdown immediately
Short Circuit Protection at On-Line Mode	Breaker, 250V AC, 10A
Output Short-Circuit Current	Ipeak 401.9A, Irms 160.7A
Buttons	(1) Power, (1) Factory reset
Status LEDs	Off: device not turned on, Flashing white: initializing / factory default, Steady white: waiting for adoption, Steady blue: device adoption and working, Flashing blue: battery mode, Alternating white/blue: firmware upgrading, Rapid flashing blue: locate, Steady red: warning, Flashing red: low battery
Battery Indicator LEDs	All off: 0%, (1) Steady blue: battery 1—19%, (2) Steady blue: battery 20—39%, (3) Steady blue: battery 40—59%, (4) Steady blue: battery 60—79%, (5) Steady blue: battery 80—100%
Operating Altitude	3,000 m (1.9 mi)
Operating Environment	Pollution Degree 2
Ambient Storage Temperature	-20 to 50° C (-4 to 122° F)
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	0 to 95% noncondensing
Certifications	CE, IEC 62040-1
