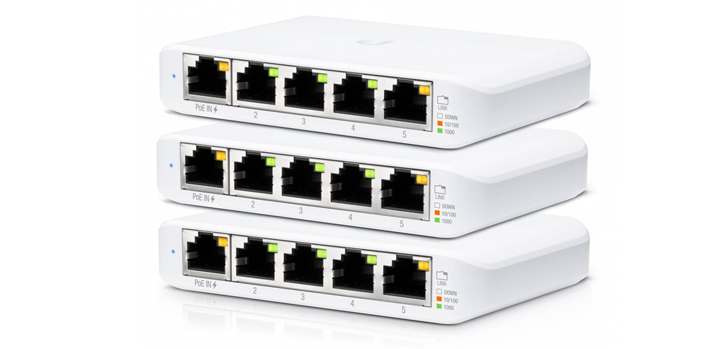

Ubiquiti 5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter, 3-Pack. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
5V, 1A USB-C power adapter NOT included with 3 Pack
5V, 1A USB-C power adapter NOT included with 3 Pack
Features
- Managed with UniFi Network Application Version: 5.12.5 or higher
- Powered by 802.3af/at PoE or USB Type C (Not included in multipacks)
- Compact Desktop Footprint
- Energy-Efficient Design
| Details | |
|---|---|
| Manufacturer's Code | USW-Flex-Mini-3 |
| Dimensions | 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83") |
| Weight | 150 g (5.29 oz) |
| Interfaces | (5) x 10/100/1000 Mbps RJ45 Ports |
| PoE In | 802.3af/at PoE (Pins 1, 2+; 3, 6-) |
| Management | Ethernet In-Band |
| Total Non-Blocking Throughput | 5 Gbps |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| Power Method | USB Type C, 5V; 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A) |
| Power Supply | 5V, 1A Power Adapter (Included only with the single-pack of the USW-Flex-Mini) |
| Voltage Range | USB Type C: 4.7 - 5.3VDC, 802.3af/at PoE: 44 - 57VDC |
| Max. Power Consumption | 2.5W |
| LEDs | System - Status, RJ45 Data Ports - Speed/Link/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 12kV Contact |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Included | 3 x USW-Flex-Mini |
| Power supply | Not Included |
1Gbps
RJ45
PoE (802.3af/at)
