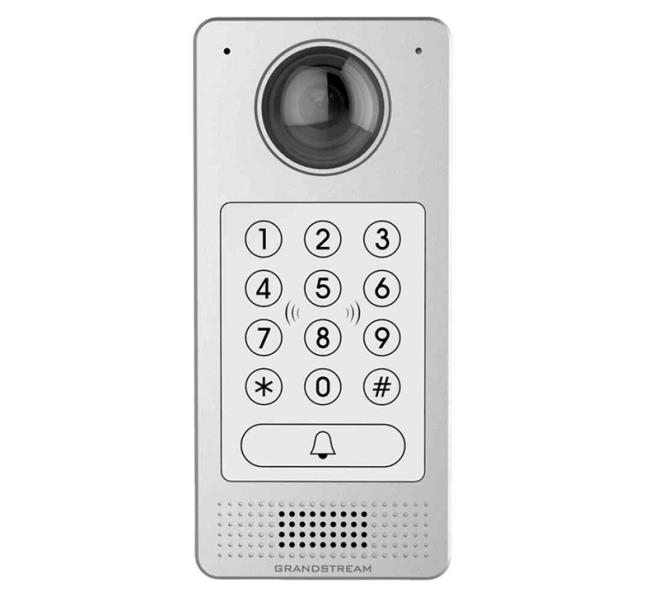

Grandstream GDS3710 FHD Keyless Video IP Door System

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

The GDS3710 is an IP Video Door System that also serves as a hi gh-definition IP surveillance camera and VoIP intercom to offer facility access control and security monitoring for buildings of all sizes. This powerful IP Video Door System offers a 180-degree video viewing angle for wall-to-wall coverage, has a built-in RFID chip reader for secure keyless entry, includes a built-in microphone and speaker to support intercom functionality and offers alarm-in and alarm-out support for integration with existing security devices. The GDS3710 integrates with Grandstream’s free management utility software, GDS Manager, allowing RFID card information, video feeds as well as the device itself to be fully managed by this software. Powered by an advanced Image Sensor Processor (ISP) and state-of-the-art image algorithms, the GDS3710 delivers 1080p FHD video resolutions and offers exceptional performance in all lighting conditions. It features SIP/VoIP technology with 2-way audio and video streaming feeds loaded directly to smart phones, SIP endpoints and the GDS management software. The GDS3710 is equipped with integrated PoE for seamless installation, bright LEDs for illumination, motion detector for security protection, lighting control switch and more. The combination of the GDS3710, Grandstream’s GXP21xx IP phones, GXV video phones, GS-Wave mobile app, and GVR350x NVR products provide a complete solution for access control, video intercom, and security recording needs.

Features

Powerful video resolutions up to 1080p
Built-in RFID chip reader for keyless entry
SIP video streaming to NVRs, video intercom stations, IP phones, or smart phones simultaneously
Built with a metal casing to make it weatherproof and vandal resistant
Built-in hemispheric camera allows for 180-degree wall-to wall coverage
Supports motion detection
Integrated PoE to power the device and provide a network connection
Built-in microphone and speaker offers voice options and intercom functionality

Details
Manufacturer's Product Code	GDS3710
Video Compression	H.264 High Profile / Main Profile / Base Profile, Motion JPEG
Image Sensor Resolution	1/2.7”, 2 Megapixel, 1920H x 1080V
Field Angle (FOV)	1/2”, F2.5, FOV: 180°(W) x 150°(H)
Multi-Stream Resolution	High-performance streaming server allowing multiple simultaneous access; Primary video stream: 1920 x 1080 resolution for continuous full HD recording; Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls; Third video stream: 320 x 240 resolution for smartphone applications
Illumination	0.5Lux
Supported Maximum Video Resolution and Frame Rate	1920x1080, 30 frames per second
Video Bit Rate	32 Kbps to 8 Mbps, multi-rate for preview & recording
Audio Input & Output	Built-in microphone, up to 1.5m with AEC; Built-in HD loudspeaker, sound quality suitable for up to 3 m
Alarm Input & Output	Yes, 2 channels, Vin < 15V, for door sensor or other devices; 2 channels, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other devices
Snapshots	Triggered upon events, sent via email and/or FTP
Wide Dynamic Range (WDR) Support	Yes, up to 120db
Network Interface	10M/100M auto-sensing 802.3af PoE
Buttons	12-key touchpad plus a capacitive doorbell button, each with individual LED illumination
RFID	125KHz: EM4100 (1 RFID card and 1 RFID key fob included), supports up to 1000 key fobs - max 500 recommended for optimal performance
SIP/VoIP Support	Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms
Dimensions	173mm(H) x 80mm(W) x 36mm(D)
