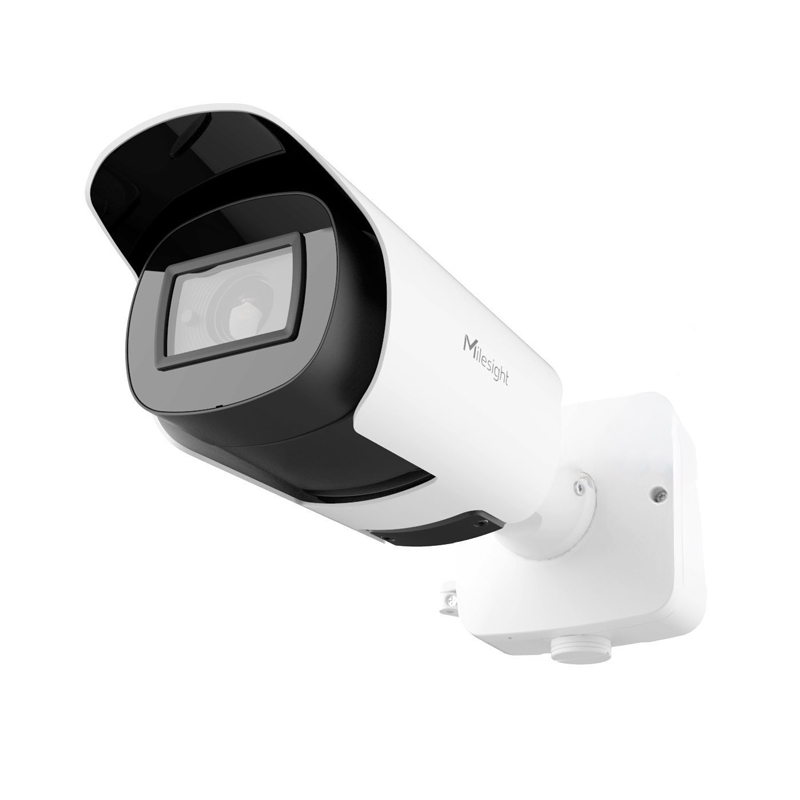

Milesight 4MP NDAA Entrance & Exit AI LPR Pro Bullet Plus Camera

$1,923.00 +GST
Login for your price
3 In Stock
SKU: MS-C4466-RFILPG1
Milesight 4MP NDAA Entrance & Exit AI LPR Pro Bullet Plus Camera
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Supported Platforms
vGRID
Description
Specifications
Resources
Package Contents
Milesight offers a number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems. Milesight Milesight Entrance & Exit AI LPR Camera features on-edge plate management for black/white lists realizing the fast implementation for barrier control. It also works well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions. Besides, it offers various CGI/APIs and supports interfaces and protocols like TCP, HTTP, etc., which makes it easy to integrate openly with all data being pushed to third-party VMS or platforms.

With built-in AI LPR algorithms and embedded black and white lists, Milesight Entrance & Exit AI LPR Cameras enable a standalone license plate recognition solution for fast implementation scenarios such as gates or barrier control with high efficiency and accuracy. It can also be used with Milesight's own back-ends, including Milesight NVR, CMS and Milesight VMS Enterprise, to form a fully closed-loop traffic solution. This highly integrated system ensures a smooth experience for access control operations at both entrances and exits.

Beyond vehicle feature and license plate recognition, Milesight Entrance & Exit AI LPR Camera can link with any regular cameras to capture the evidence. Thanks to the seamless trigger between the LPR camera and the regular camera, users can easily provide solid and convincible evidence with LPR results together with overview snapshots and critical details, such as driver's face and loaded materials in trucks.

With Milesight LPR Smart Search, relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle type & color, plate color, plate number, speed, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. In addition, it supports manual export and automatic export for easy management by security operators. Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.
Features
  • ONVIF Profile G & Q & S & T, API Compatible
  • Supports 802.3at PoE
  • Intelligent AI-powered LPR Algorithm
  • Black & White List and No-plate Vehicle Detection
  • Evidence Camera Linkage
  • LPR Smart Search
  • WDR Supported
  • Smart IR II Technology
  • IP67 & IK10 Full Protection
  • Versatile Interfaces
Details
ModelMS-C4466-RFILPG1
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: [email protected] B/W: 0Lux with IR on
WDRSupport
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR Wave Length850nm (Default); 740nm (Optional)
Illumination DistanceUp to 20m
S/N>55dB
LensMotorized [email protected]
Field of ViewH114°~H45°/ D116°~D51°/ V57°~V25°
MountΦ14
P-IrisSupport
Focus ControlAuto/Manual
Max. Vehicle Speed60km/h
Capture Rate0.99
Recognition Accuracy0.98
Coverage2 lanes
Country/Region SupportedMore than 80 countries and regions
ANPR DistanceUp to 15m
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection * Vehicle Color and Plate Color identification are not supported in low-light or night conditions.
Smart Traffic FunctionEvidence Camera Linkage
White/Black ListUp to 100,000 records inside the camera
LPR Smart SearchSupport
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm Input2
Alarm Output2 (1 relay output; 1 open collector output, max. 12V DC/10mA)
Wiegand1
RS4851
Max. Image Resolution2688x1520
Primary Stream60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Sharpness
Network StorageNAS (Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System CompatibilityAPI, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T
StoragemicroSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, EIS, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Working Temperature-40℃~60℃
Working Humidity0~95% (Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power ConsumptionMin.: 2.78W (DC 12V), 3.62W(PoE) Max.: 8.57W (DC 12V), 10.54W(PoE)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
WeightApprox. 1300g
Dimensions346mmX134mmX126mm
Warranty3 Years
Details
ContentsWarranty card, QSG
Power SupplyNot included
vGRID
100Mbps
RJ45
PoE (802.3af/at)
