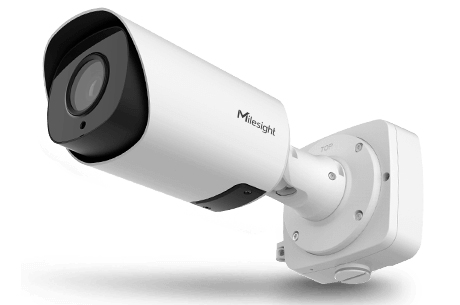

Milesight 5MP NDAA 12X AI Pro Bullet Plus Network Camera

$1,011.00 +GST
Login for your price
3 In Stock
SKU: MS-C5366-X12PE
Milesight 5MP NDAA 12X AI Pro Bullet Plus Network Camera
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Supported Platforms
vGRID
Description
Specifications
Resources
Package Contents
Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

Face Detection function detects human faces in the monitoring scene and captures the snapshots, which greatly enhances the monitoring efficiency and benefits the large population related industries such as public security, access control and business management.

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting. The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 180m. Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
Features
  • AI Deep Learning
  • 12X Optical Zoom
  • 120dB Super WDR & 0.002Lux Ultra Low-light
  • 90fps High Frame Rate
  • 180m IR Distance
  • Robust Performance with IP67 & IK10
  • Audio I/O, Alarm I/O, PoE & DC 12V
  • vGRID SaferCity Platform Compliant
Details
Product CodeMS-C5366-X12PE
Product Name5MP 12X Pro Bullet Plus Network Camera
Min. IlluminationColor: [email protected] B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Focal Length5.3∼64mm, 12X Optical Zoom
Field of ViewH57°∼H4°/D69°∼D5°/V44°∼V1°
Focus ControlAuto/Semi-Auto/Manual
ApertureF1.6∼F2.8
IRUp to 180m
Max. Image Resolution2592x1944
Frame Rate60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576); 50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180); 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180); 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas(ask Area and Mosaic Area are optional)
Region Of InterestUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfacesEthernet(10/100)
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
StorageSupportmicroSD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIPSupported - Voice&Video-over-IP
Video AnalysisVCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection,Line Crossing, Loitering, Object Left, Object Removed
Attribute ExtractionSimultaneously detect up to 50 targets and capture humans and vehicles in real time.Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter).
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & ReportCount the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Heat MapThe built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Basic EventMotion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc.
ExceptionNetwork Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System CompatibilityONVIF Profile G & Q & S & T, API
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE (802.3at)/ DC 12V±10%
Power ConsumptionMin.: 3.8W (DC 12V), 4.6W(PoE) Max.: 12.5W (DC 12V), 15.2W(PoE)
Surge Protection4KV
Weight1447g
Dimensions320mmX134mmX126mm
Warranty3 Years
ProtectionIP67, IK10
Details
ContentsWarranty card, QSG
Power SupplyNot Included
vGRID
100Mbps
RJ45
DC 12V/2A , POE+ (802.3at)
