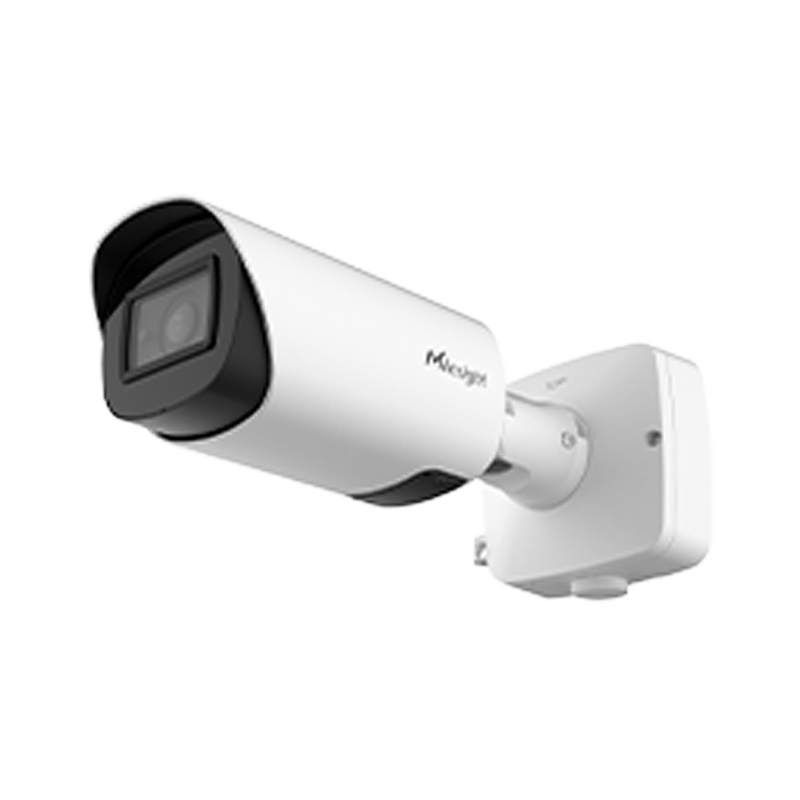

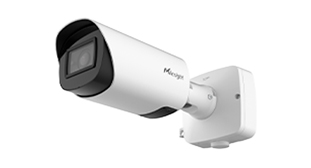

Milesight 4K NDAA AI Motorized Pro Bullet Plus Network Camera. VCA 2.0 is Milesight's upgraded video content analysis algorithm, purpose-built for essential security tasks. From intrusion to line crossing, it delivers precise, real-time detection — even in low light, rain, or fog — with dramatically reduced false alarms.
Key Highlights:
8 built-in AI VCA features for instant threat detection.
Accurate recognition of small and multiple targets.
Up to 80m AI Detection Distance (Motorized Lens).
Ultra-low false alarm rate
Powered by advanced AI, MSense takes surveillance far beyond recording. It analyzes live video streams in real time, converting them into rich, structured metadata to unlock deeper insights for industry-specific needs. A wide range of advanced, self-developed AI algorithms. Purpose-built for diverse vertical applications. Delivers actionable insights based on behaviors, counts, and attributes. Generates metadata to support smart search, reporting, and alert linkage.
Advanced P-Iris control technology with Milesight AI Motorized Pro Bullet Plus Network Camera is able to automatically and precisely response to all lighting conditions, offering optimal image quality with good depth of filed.
Delivering 4K resolution (3840*2160, effectively four times that of Full HD) is able to provide users with ultra-high-definition video viewing experience.
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Powered by advanced AI, MSense takes surveillance far beyond recording. It analyzes live video streams in real time, converting them into rich, structured metadata to unlock deeper insights for industry-specific needs. A wide range of advanced, self-developed AI algorithms. Purpose-built for diverse vertical applications. Delivers actionable insights based on behaviors, counts, and attributes. Generates metadata to support smart search, reporting, and alert linkage.
Advanced P-Iris control technology with Milesight AI Motorized Pro Bullet Plus Network Camera is able to automatically and precisely response to all lighting conditions, offering optimal image quality with good depth of filed.
Delivering 4K resolution (3840*2160, effectively four times that of Full HD) is able to provide users with ultra-high-definition video viewing experience.
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Features
- Up to 4K High Resolution
- AI Deep Learning
- 4X/12X Optical Zoom
- 1/1.8" STARVIS Starlight Sensor
- 0.0009Lux Ultra Low-light
- 90fps High Frame Rate
- Robust Performance with IP67 & IK10
- Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
- 180m IR Distance
| Details | |
|---|---|
| Product Code | MS-C8266-X4RIPG1 |
| Product Name | Milesight 4X 4K NDAA AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: [email protected], B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 227m ~ 657m O:89.5m ~ 259m R:44.5m ~ 129m I: 22.5m ~ 64.5m |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| S/N | >55dB |
| IR Wave Length | 850nm |
| IR Distance | Up to 180m |
| Lens | 8~32mm, 4X Optical Zoom |
| Field of View | H45° ~ H14.5° / D52.5° ~ D16.5° / V24.5° ~ V8° |
| Close Focus Distance | W: 1m, T: 1.5m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Flange Mount |
| Focus Control | Auto / Manual |
| Aperture | Max.F1.6 |
| Iris Type | P-Iris |
| Iris Control | Auto / Manual |
| Max.Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960,( 1280x720)50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360)50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps(CBR/VBR Adjustable) |
| AI ISP | Support |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 (Alarm Output 2: wet contact, 10mA 12V DC) |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| One-Click Disarm | Support |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload, Snapshot, SMTP Upload, Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| Working Temperature | -40℃~60℃ |
| Power Supply | PoE+ (802.3at) / DC 10V ~ DC 28V |
| power Consumption * | Min.: 4W (DC), 4.5W (PoE+) Max.: 14.5W (DC), 17W (PoE+) |
| Surge Protection | 6KV |
| Net Weight | Approx. 1.6kg |
| Gross Weight | Approx. 2.4kg |
| Dimensions | 320mm X 134mm X 126mm |
| Warranty | 3/5 Years |
| Details | |
|---|---|
| Contents | Warranty card, QSG, Wall mount, mounting screws and tightening tool included |
| Power Supply | Not included |
100Mbps
5G
RJ45
DC 12V , POE+ (802.3at)
