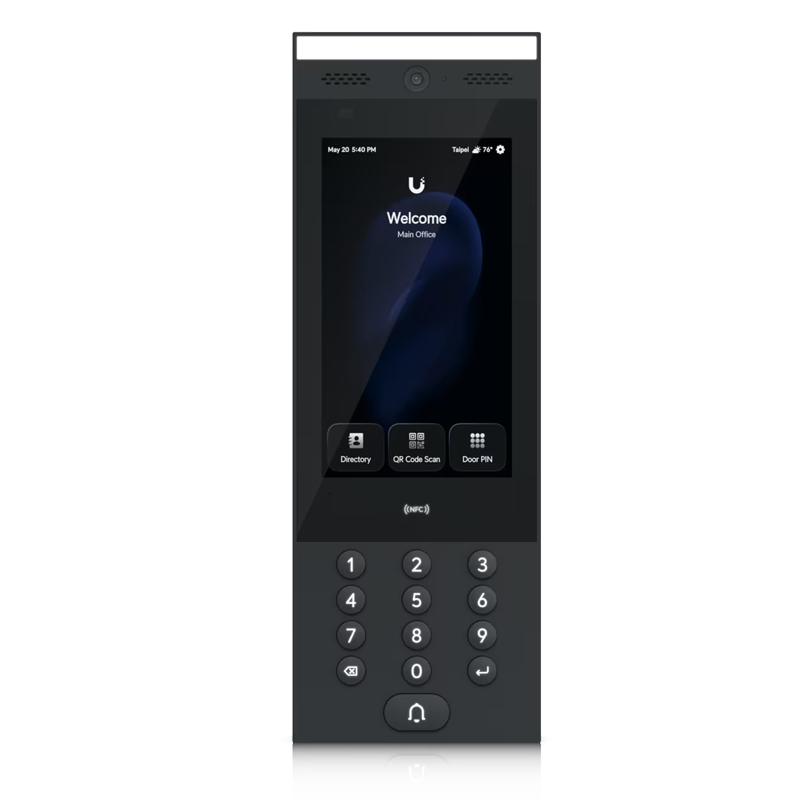

Ubiquiti UniFi Access Intercom with Camera and Keypad. UniFi Access Intercom is an indoor or outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
Features
- Unlock using Apple Wallet or an NFC card or UniFi Identity mobile app, face unlock and Touch Pass
- Directory and doorbell to request entry
- Pairs with multiple UniFi Intercom Viewers for remote access control
- Connects to UniFi Access Hub series using PoE
- Weatherproof (outdoor exposed -30 to 60° C)
- 10 free 1-year Apple Touch Passes included
| Details | |
|---|---|
| Manufacturer's Code | UA-G3-Intercom |
| Dimensions | 324.8 x 113.7 x 28.3 mm |
| Weight | Device: 965 g, Bracket: 445 g |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included), Surface angle mount, flush mount (Optional), Sunshield kit (Optional) |
| Weatherproofing | IP65 |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | Bluetooth 4.2, NFC |
| Power method | PoE |
| Supported Voltage Range | 48V DC |
| Max. power consumption | 13W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor, ALS sensor |
| Camera | 3264 x 2448, 8 MP, H: 79.4°, V: 97.5°, D: 118.2° |
| Display | 177 mm (7") diagonal |
| Resolution | 1024 x 600 (16:9) |
| Display Luminance | Max. 1000 nits (typical) |
| Touch Screen Technology | Capacitive multi-touch |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 2W |
| LEDs | (1) LCM low temperature indicator: orange (LCM turned off when it’s below -25° C but the system functions normally), (1) LED floodlight, (13) Keypad LED backlight |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | up to 30 mm |
| NFC Standards | ISO 14443A, 14443B, 15693 |
| NFC Technology | NFC Tag 1/2/3/4/5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire |
| Device Ambient Operating Temperature | -30 to 60° C |
| Display Ambient Operating Temperature | -25 to 60° C (display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional.) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Management application | UniFi Access: Version 1.22.17 and later |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | Not Included |
| Mount Kit | Included |
UniFi
Bluetooth , NFC
RJ45
PoE (802.3af/at)
