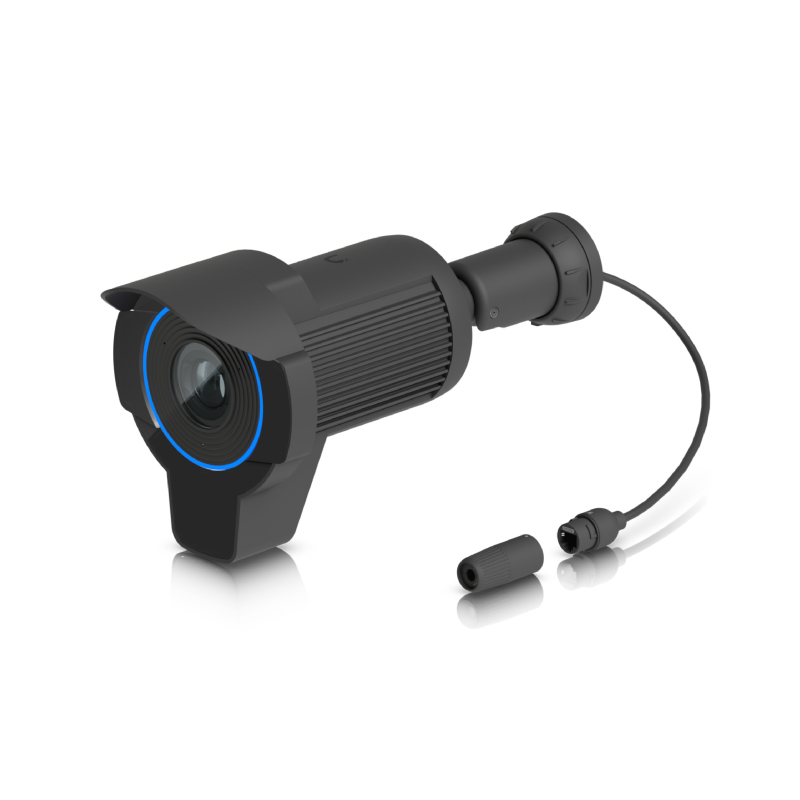

Ubiquiti UniFi Protect AI LPR is a specialized 4K camera with 3x optical zoom and long-range IR night vision optimized for recognizing license plates on vehicles moving up to 90 km/h.
Because the AI-LPR's glare-cut filter detects reflective license plates at night, its visibility is limited to license plates and headlights only. For broader surveillance coverage, consider installing a secondary "context camera" to capture the general area.
Because the AI-LPR's glare-cut filter detects reflective license plates at night, its visibility is limited to license plates and headlights only. For broader surveillance coverage, consider installing a secondary "context camera" to capture the general area.
Features
- 4K (8MP) video resolution
- 3x optical zoom
- 15 m IR capture distance
- Advanced LPR: high-speed detections at night
- Cover up to two lanes of traffic
- Record audio with integrated microphones
- Weatherproof (outdoor exposed)
| Details | |
|---|---|
| Manufacturer's Code | UVC-AI-LPR-B |
| Dimensions | 130 x 151.4 x 302.9 mm |
| IR Night Vision | 15 m |
| Optical Zoom | 3x |
| Field of View | Wide: H 109.9°, V 60°, D 127.7°, Tele: H 35°, V 19.8°, D 40° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling, pole mount (Included), Junction box, angled base (Optional) |
| Networking Interface | GbE RJ45 port |
| Maximum Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8" 8MP |
| Lens | F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 |
| IR Capture Distance | 15 m |
| LPR Night Mode | LPR optimization filter |
| Max. Power Consumption | 25.5W |
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | 1.5 kg |
| Expansion Slot | Micro SD memory card |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Aluminum Alloy |
| Cable Connector Type | RJ45 |
| Cable Diameter | 4.5 mm |
| Cable Length | 30 cm |
| Jacket Material | Thermoplastic elastomer |
| Jacket Enclosure Dimensions | Ø20 x 70.6 mm |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -20 to 50° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | Not Included |
| Mounting Bracket | Ceiling/Wall/Pole Mount included |
UniFi
1Gbps
RJ45
PoE (802.3af/at)
