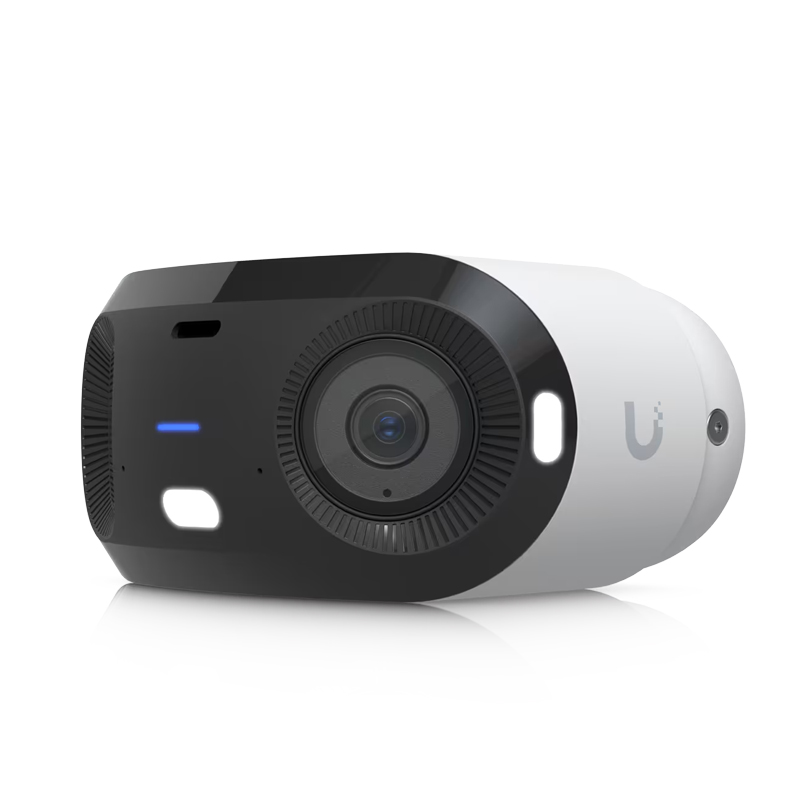

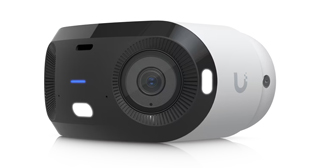

The Ubiquiti UniFi Protect G6 180 (UVC-G6-180) is an indoor/outdoor panoramic security camera that seamlessly stitches two 8MP sensors together to deliver ultra-wide 180° horizontal views in crisp 16MP (7680 x 2160) resolution. It features advanced AI analytics, night vision, and two-way audio.
Ideal for when you need broad, continuous coverage, such as driveways, open yards, facades, or large monitoring areas, where one panoramic camera can replace multiple fixed-lens units
Ideal for when you need broad, continuous coverage, such as driveways, open yards, facades, or large monitoring areas, where one panoramic camera can replace multiple fixed-lens units
Features
- Embedded Heater ensuring clear image quality and reliable operation
- Supports ceiling, wall and pole mounting. A wedge mount is included for additional articulation and a pan adapter is included for adjusting the angle when installed on a ceiling.
- 2x 8MP CMOS Sensors - Combines two 1/1.8" 8MP sensors to create a seamless 16MP, 180-degree ultra wide image
- IP66 Weatherproofing
| Details | |
|---|---|
| Manufacturer's Code | UVC-G6-180-W |
| Dimensions | 136 x 64 x 92 mm |
| IR Night Vision | 20 m (65 ft) |
| Face Recognition | ✓ |
| License Plate Recognition | ✓ |
| Smart Detections (People, Vehicles, Animals) | ✓ |
| Resolution | Dual 4K |
| Field of View | H: 180°, V: 56.7° |
| Audio | Two-way audio |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Ceiling, Pole, Wedge Mount, Pan Adapter (Included), Camera Junction Box, Arm mount, Dual Mount, Gang Box Mounting Plate (Optional) |
| Networking Interface | 10/100 MbE RJ45 port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 20 FPS |
| Resolution | 16MP 7680 x 2160 (3.5:1) |
| Sensor | Dual 1/1.8" 8MP |
| Lens | (2) Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 15W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | 839 g (1.8 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate, stainless steel |
| Expansion Slot | MicroSD card |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC, NDAA |
| Details | |
|---|---|
| Included | UVC-G6-180, Mounting Plates and Guides, Pan Adapter, Wedge Mount, Ceiling and Pole Mounts |
UniFi
RJ45
White
PoE (802.3af/at)
